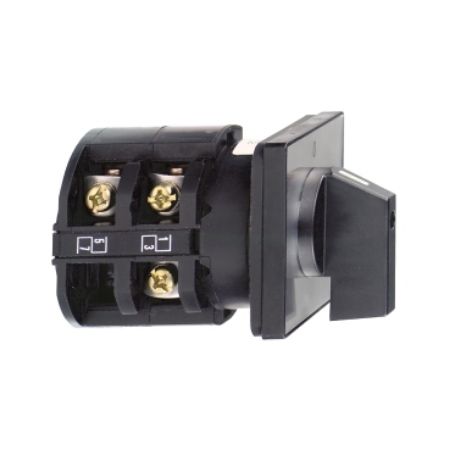

Picture of Cam switch, Harmony K, front mounting, plastic, 4 poles, 90°, 32A, 64x64mm, marked OFF/ON
SKU:

K30D004HP

Cam switch, Harmony K, front mounting, plastic, 4 poles, 90°, 32A, 64x64mm, marked OFF/ON

Old price: $352.55 INC GST
$274.99 INC GST
Available for Shipping : 24-Jul-2025
Cam switch, Harmony K, front mounting, plastic, 4 poles, 90°, 32A, 64x64mm, marked OFF/ON
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalog
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Off position with Off position
Return without
Rotary handle padlocking without
Poles description 4P
Product mounting front mounting
Cam switch head type with front plate 64 x 64 mm
Switching positions right: 0° - 90°
Type of operator black handle
Component name K30
Cam switch function switch
[Ith] conventional free air thermal current 32 A
Product or component type complete cam switch
IP degree of protection IP40 conforming to IEC 60529
Presentation of legend with metallic legend, OFF-ON black marking
Fixing mode 4 holes
Range of product Harmony K
Complementary
CAD overall depth 93 mm
CAD overall width 64 mm
Switching capacity in mA 6500 mA DC at 330 V 3 contact(s) for resistive load (T = 1 ms), 6500 mA DC at 220 V 2 contact(s) for resistive load (T = 1 ms), 6500 mA DC at 110 V 1 contact(s) for resistive load (T = 1 ms), 400 mA DC at 660 V 2 contact(s) for resistive load (T = 1 ms), 400 mA DC at 440 V 1 contact(s) for resistive load (T = 1 ms), 32000 mA DC at 95 V 2 contact(s) for resistive load (T = 1 ms), 32000 mA DC at 70 V 3 contact(s) for resistive load (T = 1 ms), 32000 mA DC at 70 V 3 contact(s) for inductive load (T = 50 ms), 32000 mA DC at 48 V 2 contact(s) for resistive load (T = 1 ms), 32000 mA DC at 48 V 2 contact(s) for inductive load (T = 50 ms), 32000 mA DC at 48 V 1 contact(s) for resistive load (T = 1 ms), 32000 mA DC at 24 V 1 contact(s) for resistive load (T = 1 ms), 32000 mA DC at 24 V 1 contact(s) for inductive load (T = 50 ms), 32000 mA DC at 140 V 3 contact(s) for resistive load (T = 1 ms), 3200 mA DC at 330 V 3 contact(s) for inductive load (T = 50 ms), 3200 mA DC at 220 V 2 contact(s) for inductive load (T = 50 ms), 3200 mA DC at 110 V 1 contact(s) for inductive load (T = 50 ms), 25000 mA DC at 90 V 3 contact(s) for inductive load (T = 50 ms), 25000 mA DC at 60 V 2 contact(s) for inductive load (T = 50 ms), 25000 mA DC at 30 V 1 contact(s) for inductive load (T = 50 ms), 23000 mA DC at 60 V 1 contact(s) for resistive load (T = 1 ms), 23000 mA DC at 180 V 3 contact(s) for resistive load (T = 1 ms), 23000 mA DC at 120 V 2 contact(s) for resistive load (T = 1 ms), 16000 mA DC at 95 V 2 contact(s) for inductive load (T = 50 ms), 16000 mA DC at 48 V 1 contact(s) for inductive load (T = 50 ms), 16000 mA DC at 140 V 3 contact(s) for inductive load (T = 50 ms), 1200 mA DC at 660 V 3 contact(s) for resistive load (T = 1 ms), 1200 mA DC at 440 V 2 contact(s) for resistive load (T = 1 ms), 1200 mA DC at 220 V 1 contact(s) for resistive load (T = 1 ms), 11000 mA DC at 60 V 1 contact(s) for inductive load (T = 50 ms), 11000 mA DC at 180 V 3 contact(s) for inductive load (T = 50 ms), 11000 mA DC at 120 V 2 contact(s) for inductive load (T = 50 ms)
Compatibility code K30D
Mechanical durability 300000 cycles
Contact operation slow-break
Tightening torque 1.2 N.m
Positive opening with
[Ui] rated insulation voltage 690 V (pollution degree 3) conforming to IEC 60947-1
Short-circuit current 5000 A
Electrical connection captive screw clamp terminals solid, clamping capacity: 2 x 6 mm², captive screw clamp terminals flexible, clamping capacity: 2 x 4 mm²
Switching angle 90 °
CAD overall height 64 mm
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 947-1, 6 kV conforming to EN 947-1
Net weight 0.25 kg
Short-circuit protection 50 A cartridge fuse, type gG
Environment
Protective treatment TC
Electrical shock protection class class II conforming to NF C 20-030, class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Standards IEC 60947-3
Product certifications cULus 480 V 20 hp 3 phases, cULus 240 V 5 hp 3 phases, cULus 240 V 5 hp 1 phase, cULus 120 V 2 hp 1 phase
Ambient air temperature for operation -25-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.4 cm
Package 1 Width 7.5 cm
Package 1 Length 12.0 cm
Package 1 Weight 234.0 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 7.588 kg
