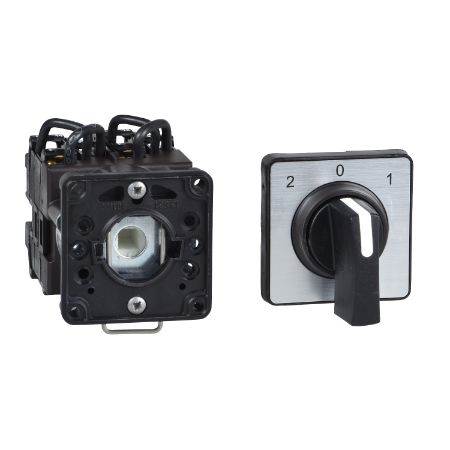

Picture of Cam changeover switch, Harmony K, Ø 22mm, plastic, 3 poles, position 0, 45°, 20A, 45x45mm, metallic legend, marked 2/0/1, 35mm black handle
SKU:

K2F003UCH

Cam changeover switch, Harmony K, Ø 22mm, plastic, 3 poles, position 0, 45°, 20A, 45x45mm, metallic legend, marked 2/0/1, 35mm black handle

Old price: $214.72 INC GST
$167.48 INC GST
Available for Shipping : 20-Aug-2025
Cam changeover switch, Harmony K, Ø 22mm, plastic, 3 poles, position 0, 45°, 20A, 45x45mm, metallic legend, marked 2/0/1, 35mm black handle
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Catalog
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Off position with Off position
Return without
Rotary handle padlocking without
Poles description 3P
Product mounting front mounting
Cam switch head type with front plate 45 x 45 mm
Switching positions left: 0° - 315°, right: 0° - 45°
Type of operator black handle, length = 35 mm
Component name K2
Cam switch function changeover switch
[Ith] conventional free air thermal current 20 A
Product or component type complete cam switch
IP degree of protection IP65 conforming to IEC 60529
Presentation of legend with metallic legend, 2 - 0 - 1 black marking
Fixing mode Ø 22 mm hole
Range of product Harmony K
Complementary
CAD overall depth 69 mm
CAD overall width 45 mm
Compatibility code K2F
Mechanical durability 1000000 cycles
Contact operation slow-break
Positive opening with
[Ui] rated insulation voltage 690 V (pollution degree 3) conforming to IEC 60947-1
Short-circuit current 10000 A
Maximum operating rate 8.333 cyc/mn AC-15, 2.5 cyc/mn AC-3, 2.5 cyc/mn AC-23, 2.5 cyc/mn AC-21
Electrical durability 600000 cycles AC-21, 600000 cycles AC-15, 200000 cycles AC-3, 200000 cycles AC-23
Electrical connection captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm², captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²
Switching angle 45 °
CAD overall height 50 mm
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 947-1, 4 kV in isolating function
Net weight 0.19 kg
[Ithe] conventional enclosed thermal current 16 A
Short-circuit protection 20 A cartridge fuse, type gG
Environment
Protective treatment TC
Electrical shock protection class class II, class II conforming to IEC 536
Ambient air temperature for storage -40-70 °C
Standards CENELEC EN 50013, IEC 60947-5-1 for control circuit, IEC 60947-3 for power circuit
Product certifications UL 240 V 1 hp 3 phases, CSA 240 V 1 hp 1 phase, UL 240 V 0.33 hp 1 phase 2 pole(s), CSA 240 V 3 hp 3 phases 2 pole(s)
Shock resistance 30 gn conforming to IEC 68-2-27
Vibration resistance 5 gn conforming to IEC 68-2-6 (f = 10-150 Hz)
Ambient air temperature for operation -25-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 6.500 cm
Package 1 Length 16.500 cm
Package 1 Weight 202.000 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.492 kg
Unit Type of Package 3 3
Number of Units in Package 3 256
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 64.672 kg
