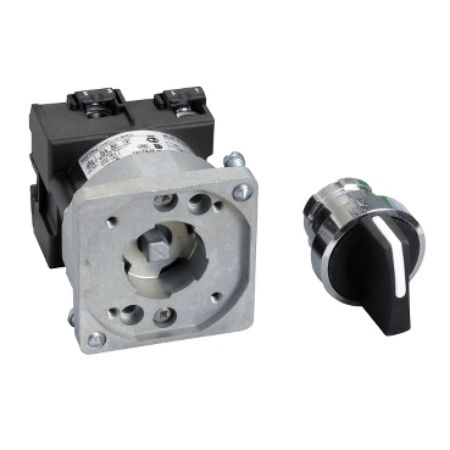

Picture of Complete cam switch, Harmony K1, K2, cam switch specif sweden for megacon
SKU:

K1SB50115Z

Complete cam switch, Harmony K1, K2, cam switch specif sweden for megacon

Old price: $121.88 INC GST
$95.07 INC GST
Available for Shipping : 28-Aug-2025
Complete cam switch, Harmony K1, K2, cam switch specif sweden for megacon
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalog
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Component name K1
[Ith] conventional free air thermal current 12 A
Product or component type complete cam switch
IP degree of protection IP65 conforming to IEC 60529
Range of product Harmony K
Complementary
Compatibility code K1S
Mechanical durability 1000000 cycles
Short-circuit current 10000 A
Maximum operating rate 2.5 cyc/mn AC-3, 2.5 cyc/mn AC-23, 2.5 cyc/mn AC-21, 8333 cyc/mn AC-15
Electrical durability 500000 cycles AC-3, 500000 cycles AC-23, 1000000 cycles AC-21, 1000000 cycles AC-15
Electrical connection captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm², captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²
Short-circuit protection 16 A cartridge fuse, type gG
Environment
Protective treatment TC
Overvoltage category class II conforming to NF C 20-030, class II conforming to IEC 536
Ambient air temperature for storage -40-70 °C
Standards GB/T 14048.3 for power circuit, GB/T 14048.5 for control circuit, CENELEC EN 50013, IEC 60947-5-1 for control circuit, IEC 60947-3 for power circuit
Product certifications CCC, UL 240 V 1 hp 3 phases, CSA 240 V 1 hp 1 phase, UL 240 V 0.33 hp 1 phase 2 -pole(s), CSA 240 V 3 hp 3 phases 2 -pole(s)
Shock resistance 30 gn conforming to IEC 68-2-27
Vibration resistance 5 gn conforming to IEC 68-2-6 (f = 10-150 Hz)
Ambient air temperature for operation -25-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.5 cm
Package 1 Width 4.5 cm
Package 1 Length 6.1 cm
Package 1 Weight 221.0 g
