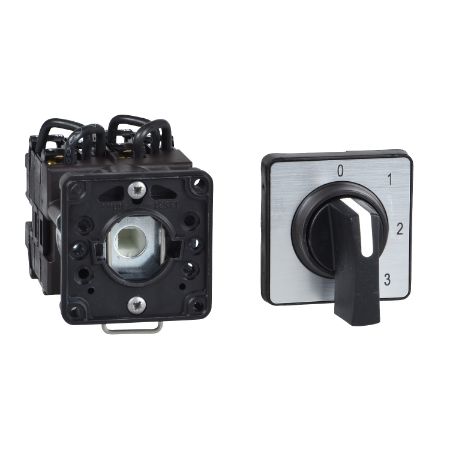

Picture of Cam voltmeter switch, Harmony K, phases phases, 22mm, plastic, 4 positions, position 0, 45°, 12A, 45x45mm,metallic legend, 35mm black handle
SKU:

K1D024MCH

Cam voltmeter switch, Harmony K, phases phases, 22mm, plastic, 4 positions, position 0, 45°, 12A, 45x45mm,metallic legend, 35mm black handle

$126.32 INC GST
Available for Shipping : 12-Aug-2025
Cam voltmeter switch, Harmony K, phases phases, 22mm, plastic, 4 positions, position 0, 45°, 12A, 45x45mm,metallic legend, 35mm black handle
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalog
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony K1 cam voltmeter switch has 3L (3P). It also has a rating of 12A, a screw clamp mounting mode and a metallic color with black marking. It has "0 - L1-L2 - L2-L3 - L1-L3" marking to indicate the position of the switch. This metal head cam voltmeter switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 45 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.

Products specifications

Attribute name Attribute value
Main
Off position with Off position
Return without
Rotary handle padlocking without
Cam switch head type with front plate 45 x 45 mm
Switching positions right: 0° - 45° - 90° - 135°
Mounting location front
Type of operator black handle, length = 35 mm
Component name K1
Cam switch function voltmeter switch
[Ith] conventional free air thermal current 12 A
Product or component type complete cam switch
IP degree of protection IP65 conforming to IEC 60529
Type of measurement between 3 phases
Presentation of legend with metallic legend, 0 - L1L2 - L2L3 - L3L1 black marking
Fixing mode Ø 22 mm hole
Range of product Harmony K
Complementary
[Ie] rated operational current AC 3 A at 230 V AC-15 conforming to IEC 947-5-1, 2 A at 400 V AC-15 conforming to IEC 947-5-1, 1 A at 500 V AC-15 conforming to IEC 947-5-1, 5.6 A at 230 V AC-23A 3 phases conforming to IEC 947-3, 4.8 A at 400 V AC-23A 3 phases conforming to IEC 947-3, 4.6 A at 230 V AC-3 3 phases conforming to IEC 947-3, 3.8 A at 500 V AC-23A 3 phases conforming to IEC 947-3, 3.3 A at 400 V AC-3 3 phases conforming to IEC 947-3, 2.8 A at 690 V AC-23A 3 phases conforming to IEC 947-3, 2.8 A at 500 V AC-3 3 phases conforming to IEC 947-3, 1.8 A at 690 V AC-3 3 phases conforming to IEC 947-3
Rated operational power in W 8300 W AC-21, 400 V 3 phases conforming to IEC 947-3, 600 W AC-3, 230 V 1 phase conforming to IEC 947-3, 4800 W AC-21, 230 V 3 phases conforming to IEC 947-3, 2200 W AC-23A, 690 V 3 phases conforming to IEC 947-3, 2200 W AC-23A, 500 V 3 phases conforming to IEC 947-3, 2200 W AC-23A, 400 V 3 phases conforming to IEC 947-3, 1500 W AC-3, 690 V 3 phases conforming to IEC 947-3, 1500 W AC-3, 500 V 3 phases conforming to IEC 947-3, 1500 W AC-3, 400 V 3 phases conforming to IEC 947-3, 1500 W AC-3, 400 V 1 phase conforming to IEC 947-3, 1500 W AC-23A, 230 V 3 phases conforming to IEC 947-3, 1100 W AC-3, 230 V 3 phases conforming to IEC 947-3, 10500 W AC-21, 500...660 V 3 phases conforming to IEC 947-3
CAD overall depth 59 mm
CAD overall width 45 mm
Compatibility code K1D
Mechanical durability 1000000 cycles
Contact operation slow-break
Positive opening with
[Ui] rated insulation voltage 690 V (pollution degree 3) conforming to IEC 60947-1
Short-circuit current 10000 A
Maximum operating rate 8.333 cyc/mn AC-15, 2.5 cyc/mn AC-3, 2.5 cyc/mn AC-23, 2.5 cyc/mn AC-21
Electrical durability 500000 cycles AC-3, 500000 cycles AC-23, 1000000 cycles AC-21, 1000000 cycles AC-15
Electrical connection captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm², captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²
Switching angle 45 °
CAD overall height 50 mm
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 947-1, 4 kV in isolating function
Net weight 0.16 kg
[Ithe] conventional enclosed thermal current 10 A
Short-circuit protection 16 A cartridge fuse, type gG
Environment
Protective treatment TC
Overvoltage category class II conforming to NF C 20-030, class II conforming to IEC 536
Ambient air temperature for storage -40-70 °C
Standards CENELEC EN 50013, IEC 60947-5-1 for control circuit, IEC 60947-3 for power circuit
Product certifications UL 240 V 0.33 hp 1 phase 2 -pole(s), UL 240 V 1 hp 3 phases, CSA 240 V 3 hp 3 phases 2 -pole(s), CSA 240 V 1 hp 1 phase
Shock resistance 30 gn conforming to IEC 68-2-27
Vibration resistance 5 gn conforming to IEC 68-2-6 (f = 10-150 Hz)
Ambient air temperature for operation -25-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 6.500 cm
Package 1 Length 11.000 cm
Package 1 Weight 171.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.888 kg
