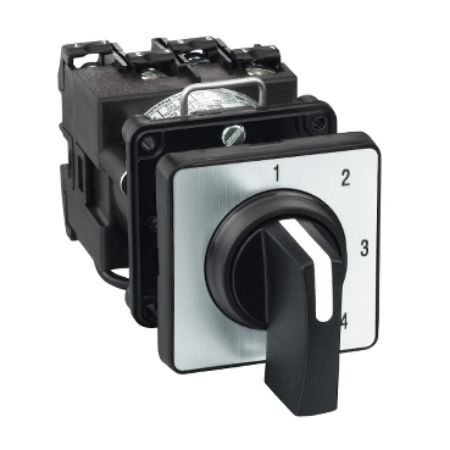

Picture of Cam stepping switch, Harmony K, 22mm, plastic, 1 pole, 4 steps, 45°, 12A, 45x45mm, metallic legend, marked 1 2 3 4, 35mm black handle
SKU:

K1D004NCH

Cam stepping switch, Harmony K, 22mm, plastic, 1 pole, 4 steps, 45°, 12A, 45x45mm, metallic legend, marked 1 2 3 4, 35mm black handle

Old price: $100.43 INC GST
$78.34 INC GST
Available for Shipping : 12-Aug-2025
Cam stepping switch, Harmony K, 22mm, plastic, 1 pole, 4 steps, 45°, 12A, 45x45mm, metallic legend, marked 1 2 3 4, 35mm black handle
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Declaration of conformity
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony K1 cam stepping switch has 1 pole (1P). It also has a rating of 12A, a screw clamp mounting mode and a metallic color with black marking. It has "1 - 2 - 3 - 4" marking to indicate the position of the switch. This metal head cam stepping switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 45 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.

Products specifications

Attribute name Attribute value
Main
Off position without Off position
Return without
Cam switch head type with front plate 45 x 45 mm
Switching positions right: 0° - 45° - 90° - 135°
Type of operator black handle, length = 35 mm
IP degree of protection IP65 conforming to IEC 60529
Range of product Harmony K
Rotary handle padlocking without
Poles description 1P
Mounting location front
Component name K1
Cam switch function stepping switch
[Ith] conventional free air thermal current 12 A
Product or component type complete cam switch
Presentation of legend with metallic legend, 1 - 2 - 3 - 4 black marking
Fixing mode Ø 22 mm hole
Complementary
Compatibility code K1D
Mechanical durability 1000000 cycles
Contact operation slow-break
Positive opening with
Electrical durability 500000 cycles AC-3, 500000 cycles AC-23, 1000000 cycles AC-21, 1000000 cycles AC-15
Electrical connection captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm², captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²
CAD overall height 50 mm
[Ie] rated operational current AC 3 A at 230 V AC-15 conforming to IEC 947-5-1, 2 A at 400 V AC-15 conforming to IEC 947-5-1, 1 A at 500 V AC-15 conforming to IEC 947-5-1, 5.6 A at 230 V AC-23A 3 phases conforming to IEC 947-3, 4.8 A at 400 V AC-23A 3 phases conforming to IEC 947-3, 4.6 A at 230 V AC-3 3 phases conforming to IEC 947-3, 3.8 A at 500 V AC-23A 3 phases conforming to IEC 947-3, 3.3 A at 400 V AC-3 3 phases conforming to IEC 947-3, 2.8 A at 690 V AC-23A 3 phases conforming to IEC 947-3, 2.8 A at 500 V AC-3 3 phases conforming to IEC 947-3, 1.8 A at 690 V AC-3 3 phases conforming to IEC 947-3
Rated operational power in W 8300 W AC-21, 400 V 3 phases conforming to IEC 947-3, 600 W AC-3, 230 V 1 phase conforming to IEC 947-3, 4800 W AC-21, 230 V 3 phases conforming to IEC 947-3, 2200 W AC-23A, 690 V 3 phases conforming to IEC 947-3, 2200 W AC-23A, 500 V 3 phases conforming to IEC 947-3, 2200 W AC-23A, 400 V 3 phases conforming to IEC 947-3, 1500 W AC-3, 690 V 3 phases conforming to IEC 947-3, 1500 W AC-3, 500 V 3 phases conforming to IEC 947-3, 1500 W AC-3, 400 V 3 phases conforming to IEC 947-3, 1500 W AC-3, 400 V 1 phase conforming to IEC 947-3, 1500 W AC-23A, 230 V 3 phases conforming to IEC 947-3, 1100 W AC-3, 230 V 3 phases conforming to IEC 947-3, 10500 W AC-21, 500...660 V 3 phases conforming to IEC 947-3
CAD overall depth 59 mm
CAD overall width 45 mm
[Ui] rated insulation voltage 690 V (pollution degree 3) conforming to IEC 60947-1
Short-circuit current 10000 A
Maximum operating rate 8.333 cyc/mn AC-15, 2.5 cyc/mn AC-3, 2.5 cyc/mn AC-23, 2.5 cyc/mn AC-21
Switching angle 45 °
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 947-1, 4 kV in isolating function
Net weight 0.16 kg
[Ithe] conventional enclosed thermal current 10 A
Number of steps 4
Short-circuit protection 16 A cartridge fuse, type gG
Environment
Protective treatment TC
Ambient air temperature for storage -40-70 °C
Shock resistance 30 gn conforming to IEC 68-2-27
Ambient air temperature for operation -25-55 °C
Overvoltage category class II conforming to NF C 20-030, class II conforming to IEC 536
Standards CENELEC EN 50013, IEC 60947-5-1 for control circuit, IEC 60947-3 for power circuit
Product certifications UL 240 V 1 hp 3 phases, CSA 240 V 1 hp 1 phase, UL 240 V 0.33 hp 1 phase 2 -pole(s), CSA 240 V 3 hp 3 phases 2 -pole(s)
Vibration resistance 5 gn conforming to IEC 68-2-6 (f = 10-150 Hz)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 6.700 cm
Package 1 Length 11.000 cm
Package 1 Weight 170.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.880 kg
