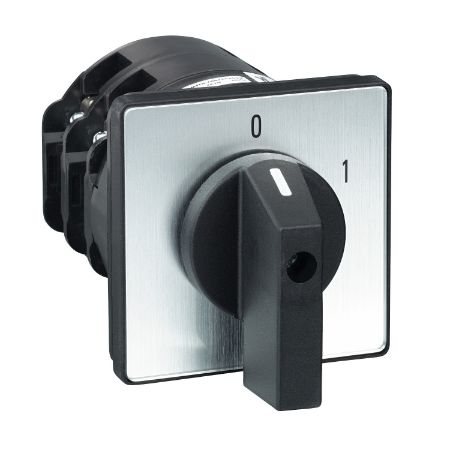

Picture of Cam switch, Harmony K, front mounting, plastic, 3 poles, 60°, 115A, 88x88mm, marked 0/1
SKU:

K115C003AP

Cam switch, Harmony K, front mounting, plastic, 3 poles, 60°, 115A, 88x88mm, marked 0/1

Old price: $650.10 INC GST
$507.08 INC GST
Available for Shipping : 12-Aug-2025
Cam switch, Harmony K, front mounting, plastic, 3 poles, 60°, 115A, 88x88mm, marked 0/1
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalog
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Off position with Off position
Return without
Rotary handle padlocking without
Poles description 3P
Product mounting front mounting
Cam switch head type with front plate 88 x 88 mm
Switching positions right: 0° - 60°
Type of operator black handle
Component name K115
Cam switch function switch
[Ith] conventional free air thermal current 115 A
Product or component type complete cam switch
IP degree of protection IP40 conforming to IEC 60529
Presentation of legend with metallic legend, 0 - 1 black marking
Fixing mode 4 holes
Range of product Harmony K
Complementary
[Ie] rated operational current AC 100 A AC-21A conforming to IEC 60947-3
Rated operational power in W 7500 W AC-3, 220/240 V 1 phase conforming to IEC 60947-3, 5500 W AC-23A, 110 V 1 phase conforming to IEC 60947-3, 45000 W AC-23A, 660/690 V 3 phases conforming to IEC 60947-3, 45000 W AC-23A, 380/440 V 3 phases conforming to IEC 60947-3, 3700 W AC-3, 110 V 1 phase conforming to IEC 60947-3, 30000 W AC-3, 660/690 V 3 phases conforming to IEC 60947-3, 30000 W AC-3, 380/440 V 3 phases conforming to IEC 60947-3, 30000 W AC-23A, 220/240 V 3 phases conforming to IEC 60947-3, 22000 W AC-23A, 380/440 V 1 phase conforming to IEC 60947-3, 15000 W AC-3, 220/240 V 3 phases conforming to IEC 60947-3, 15000 W AC-23A, 220/240 V 1 phase conforming to IEC 60947-3, 13000 W AC-3, 380/440 V 1 phase conforming to IEC 60947-3
CAD overall depth 128 mm
CAD overall width 88 mm
Switching capacity in mA 33000 mA DC at 90 V 3 contact(s) for inductive load (T = 50 ms), 33000 mA DC at 60 V 2 contact(s) for inductive load (T = 50 ms), 33000 mA DC at 30 V 1 contact(s) for inductive load (T = 50 ms), 100000 mA DC at 95 V 2 contact(s) for resistive load (T = 1 ms), 100000 mA DC at 70 V 3 contact(s) for inductive load (T = 50 ms), 100000 mA DC at 48 V 2 contact(s) for inductive load (T = 50 ms), 100000 mA DC at 48 V 1 contact(s) for resistive load (T = 1 ms), 100000 mA DC at 24 V 1 contact(s) for inductive load (T = 50 ms), 100000 mA DC at 140 V 3 contact(s) for resistive load (T = 1 ms), 115000 mA DC at 70 V 3 contact(s) for resistive load (T = 1 ms), 115000 mA DC at 48 V 2 contact(s) for resistive load (T = 1 ms), 115000 mA DC at 24 V 1 contact(s) for resistive load (T = 1 ms)
Compatibility code K11
Mechanical durability 300000 cycles
Contact operation slow-break
Tightening torque 2.5 N.m
Positive opening with
[Ui] rated insulation voltage 690 V (pollution degree 3) conforming to IEC 60947-1
Short-circuit current 15000 A
Electrical connection captive screw clamp terminals solid, clamping capacity: 1 x 35 mm², captive screw clamp terminals flexible, clamping capacity: 1 x 25 mm²
Switching angle 60 °
CAD overall height 88 mm
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 947-1, 6 kV conforming to EN 947-1
Net weight 0.68 kg
Short-circuit protection 125 A cartridge fuse, type gG
Environment
Protective treatment TC
Electrical shock protection class class II conforming to NF C 20-030, class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Standards IEC 60947-3
Product certifications cULus 480 V 30 hp 3 phases, cULus 240 V 20 hp 3 phases, cULus 240 V 10 hp 1 phase, cULus 120 V 5 hp 1 phase
Ambient air temperature for operation -25-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 20.000 cm
Package 1 Width 9.800 cm
Package 1 Length 9.700 cm
Package 1 Weight 691.900 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.173 kg
