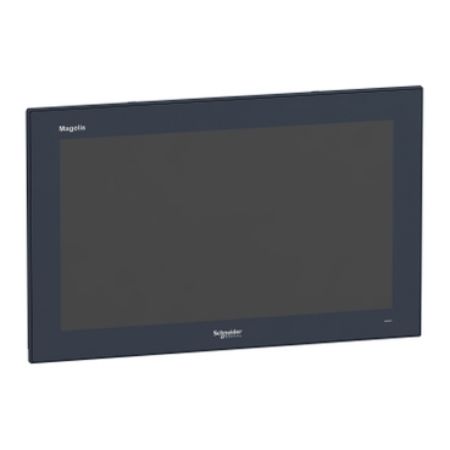

Picture of Multi touch screen, Harmony iPC, S Panel PC Perf. SSD W19” DC Win 10 IoT Enterprise
SKU:

HMIPSPS952D180L

Multi touch screen, Harmony iPC, S Panel PC Perf. SSD W19” DC Win 10 IoT Enterprise

Old price: $9,960.50 INC GST
$9,462.48 INC GST
Available for Shipping : 11-Sep-2025
Product Selector
Multi touch screen, Harmony iPC, S Panel PC Perf. SSD W19” DC Win 10 IoT Enterprise
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
User guide
Environmental Disclosure
Catalog
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Operating system Windows 10 IoT Enterprise 64 bitmulti-language
Display colour 16777216 colors
Display size 18.5 inch
Free slots 1 CFast, 1 Internal SATA HDD/SSD
Processor name Intel Core i3 4010U at 1.7 GHz
Chipset type Intel QM87
Software package Vijeo Citect DVD SCADA license not included, EcoStruxure augmented operator advisor server augmented operator license not included, EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only, EcoStruxure Operator Terminal Expert run time HMI license not included, EcoStruxture secure connect advisor annual subscription cyber security license not included
Range of product Harmony iPC
Luminance 300 cd/m²
Product or component type multi-touch screen
Video controller type Intel HD Graphics 4400
Pixel resolution 4096 x 4096
Complementary
Data storage equipment 256 GB back side SSD 1500000 h mtbf
Display type LED, colour TFT LCD
Type of cooling fanless, passive
Cut-out dimensions 479.3 (+/- 1) x 300.3 (+/- 0.7)
Display size 19" wide multi-touch
Function available operate with water on screen
Watchdog timer 1-255 ms
[Us] rated supply voltage 100...240 V AC with additional adaptor HMIYPSPMAC1, 24 V DC +/- 20 %
Height 309 mm
Electrical connection connector, connector type: SMA, 3 ways
Backlight lifespan 50000 hours
Mechanical robustness hardness anti-scratch 7H
Power consumption in W 18-60 W
Aspect ratio 16:9
Depth 56.7 mm
Width 488 mm
Local signalling LED (orange) for stand-by, LED (green) for on, buzzer
Touch panel projected capacitive technology (PCT)
Memory type 8 GB RAM DDR3 internal
View angle horizontal x vertical 150 x 140°
Net weight 7 kg
Terminal type touchscreen display
Display resolution 1366 x 768 pixels WXGA
Main type Performance
Number of slots 1 mini PCI Express full-size
Number of points 5
Environment
IP degree of protection IP66 front panel:
Relative humidity 10-95 % non-condensing
Ambient air temperature for storage -20-60 °C
Directives 2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility
Pollution degree 2
Ambient air temperature for operation 0-45 °C Mini PCIe, 0-45 °C HDD, 0-55 °C Cfast card, 0-55 °C SSD
Operating altitude 2000
Vibration resistance 2 gn (f = 5-500 Hz)Cfast card, 2 gn (f = 5-500 Hz)SSD, 1 gn (f = 5-500 Hz)HDD
Standards IEC 60950,  CSA C22.2 No 60950, FCC part 15 class A, IEC 61000-6-2, IEC 61000-6-4, CISPR 11,  UL 60950
Product certifications AS/NZS, RCM, EAC, CCC, C-Tick, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 49.5 cm
Package 1 Width 16.0 cm
Package 1 Length 68.5 cm
Package 1 Weight 6.0 kg
