SKU:

HMIPSP0952D1001

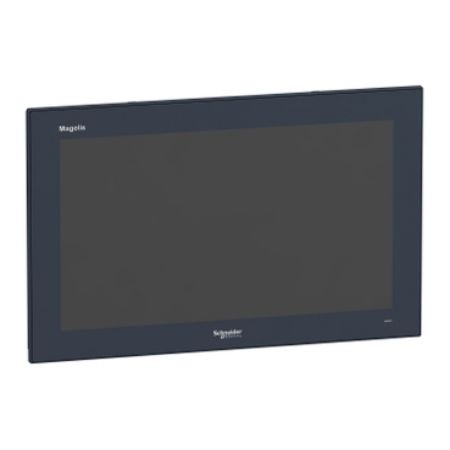

Multi touch screen, Harmony iPC, S Panel PC Performance W19 DC N, Base unit

Old price: $9,889.00 INC GST

Price: $9,394.55 INC GST

Qty:

Available for Shipping : 09-Sep-2025

Product Selector

Multi touch screen, Harmony iPC, S Panel PC Performance W19 DC N, Base unit

Be the first to review this product

Manufacturer: Schneider Electric

User guide

Environmental Disclosure

Catalog

Circularity Profile

Declaration of conformity

Product Page Link

Product Data Sheet

Products specifications

Attribute name	Attribute value
Main
Display colour	16777216 colors
Display size	18.5 inch
Free slots	1 CFast, 1 Internal SATA HDD/SSD
Processor name	Intel Core i3 4010U at 1.7 GHz
Chipset type	Intel QM87
Software package	EcoStruxure augmented operator advisor server augmented operator license not included, EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only, EcoStruxure Operator Terminal Expert run time HMI license not included, EcoStruxture secure connect advisor annual subscription cyber security license not included
Range of product	Harmony iPC
Luminance	300 cd/m²
Product or component type	multi-touch screen
Video controller type	Intel HD Graphics 4400
Pixel resolution	4096 x 4096
Complementary
Data storage equipment	CFast card
Display type	LED, colour TFT LCD
Type of cooling	passive, fanless
Cut-out dimensions	479.3 (+/- 1) x 300.3 (+/- 0.7)
Display size	19" wide multi-touch
Function available	operate with water on screen
Watchdog timer	1-255 ms
[Us] rated supply voltage	100...240 V AC with additional adaptor HMIYPSPMAC1, 24 V DC +/- 20 %
Height	309 mm
Backlight lifespan	50000 hours
Mechanical robustness	hardness anti-scratch 7H
Power consumption in W	28-60 W
Aspect ratio	16:9
Depth	56.7 mm
Width	488 mm
Touch panel	projected capacitive technology (PCT)
Memory type	8 GB RAM DDR3 internal
View angle horizontal x vertical	160 x 170°
Net weight	7 kg
Terminal type	touchscreen display
Display resolution	1366 x 768 pixels WXGA
Main type	Performance
Number of slots	1 mini PCI Express full-size
Number of points	5
Environment
IP degree of protection	IP66 front panel:
Relative humidity	10-95 % non-condensing
Ambient air temperature for storage	-20-60 °C
Directives	2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility
Pollution degree	2
Ambient air temperature for operation	0-45 °C HDD, 0-55 °C Cfast card, 0-55 °C SSD
Operating altitude	2000
Vibration resistance	1 gn (f = 5-500 Hz)HDD
Standards	IEC 61000-6-2, CSA C22.2 No 60950, FCC part 15 class A, UL 60950, IEC 61000-6-4, CISPR 11, IEC 60950
Product certifications	C-Tick, AS/NZS, CCC, RCM, CE, EAC
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	17.53 cm
Package 1 Width	55.37 cm
Package 1 Length	70.61 cm
Package 1 Weight	8.54 kg
