SKU:

HMIPSOS752D1801

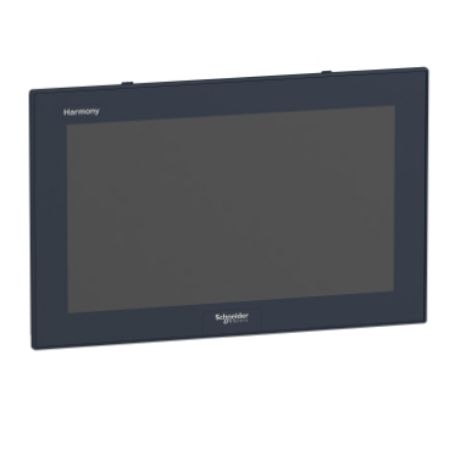

Multi touch screen, Harmony iPC, S Panel PC Optimized SSD W15 DC Windows 10

Old price: $5,560.50 INC GST

Price: $5,282.48 INC GST

Qty:

Available for Shipping : 28-Jul-2025

Product Selector

Multi touch screen, Harmony iPC, S Panel PC Optimized SSD W15 DC Windows 10

Be the first to review this product

Manufacturer: Schneider Electric

Circularity Profile

User guide

CAD

Environmental Disclosure

Catalog

Declaration of conformity

Product Page Link

Product Data Sheet

Products specifications

Attribute name	Attribute value
Main
Operating system	Windows 10 IoT Enterprise 64 bitmulti-language
Display colour	16777216 colors
Display size	15.6 inch
Processor name	Intel Atom E3827 dual core at 1.75 GHz
Luminance	300 cd/m²
Free slots	1 CFast, 1 Internal SATA HDD/SSD
Chipset type	Intel Atom SoC
Software package	EcoStruxure augmented operator advisor server augmented operator license not included, EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only, EcoStruxure Operator Terminal Expert run time HMI license not included, EcoStruxture secure connect advisor annual subscription cyber security license not included
Range of product	Harmony iPC
Product or component type	multi-touch screen
Video controller type	Intel HD Graphics
Pixel resolution	4096 x 4096
Complementary
Data storage equipment	128 GB extension back side SSD 1500000 h mtbf
Display type	colour TFT LCD, LED
Type of cooling	fanless, passive
Display size	15" wide multi-touch
Function available	operate with water on screen
Watchdog timer	1-255 ms
[Us] rated supply voltage	100...240 V AC with additional adaptor HMIYPSOMAC1, 24 V DC +/- 20 %
Height	269 mm
Aspect ratio	16:9
View angle horizontal x vertical	150 x 140°
Net weight	3.9 kg
Terminal type	touchscreen display
Number of slots	1 mini PCI Express full-size
Number of points	5
Cut-out dimensions	412.4 (+/- 0.7) x 261.7 (+/- 0.4)
Backlight lifespan	50000 hours
Mechanical robustness	hardness anti-scratch 7H
Depth	86 mm
Width	419.7 mm
[In] rated current	1.7 A
Local signalling	LED (orange) for stand-by, LED (green) for on, buzzer
Touch panel	projected capacitive technology (PCT)
Memory type	4 GB RAM DDR3 internal
Display resolution	1366 x 768 pixels WXGA
Main type	Optimised
Environment
Ambient air temperature for storage	-20-60 °C
Ambient air temperature for operation	0-45 °C Mini PCIe, 0-45 °C HDD, 0-55 °C Cfast card, 0-55 °C SSD
Operating altitude	2000
Product certifications	EAC, CCC, RCM, AS/NZS, C-Tick, CE
IP degree of protection	IP66 front panel:
Relative humidity	10-95 % non-condensing
Directives	2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility
Pollution degree	2
Vibration resistance	2 gn (f = 5-500 Hz)Cfast card, 2 gn (f = 5-500 Hz)SSD, 1 gn (f = 5-500 Hz)HDD
Standards	IEC 60950, FCC part 15 class A, IEC 61000-6-4, UL 60950, CISPR 11, IEC 61000-6-2, CSA C22.2 No 60950
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	6.2 cm
Package 1 Width	26.9 cm
Package 1 Length	42.0 cm
Package 1 Weight	4.0 kg
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	80 cm
Package 2 Width	105 cm
Package 2 Length	125 cm
Package 2 Weight	49 kg
