SKU:

HMIPSOS552D1801

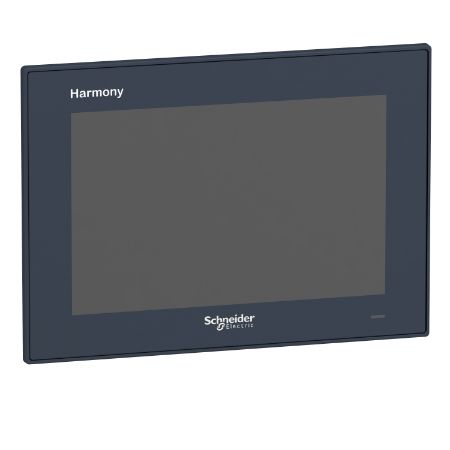

multi touch screen, Harmony iPC, S panel PC optimized, SSD, 10inch wide display, DC, Windows 10

Old price: $4,747.60 INC GST

Price: $4,510.22 INC GST

Qty:

Available for Shipping : 02-Dec-2025

Product Selector

multi touch screen, Harmony iPC, S panel PC optimized, SSD, 10inch wide display, DC, Windows 10

10" wide TFT multi-touch screens, LED backlight, IP66 protection, and 7H hardness anti-scratch front

Maintenance-free non-rotating parts and operation up to +55 °C/131 °F

Integration of software applications such as HMI EcoStruxure Operator Terminal Expert and third-party Windows software

Expansions with optional interfaces based on mini PCIe (Com, USB, HD audio, Video, networks, wireless, etc.)

Available with Windows 10 or without an operating system in Configured-to-order offer

Be the first to review this product

Manufacturer: Schneider Electric

User guide

CAD

Circularity Profile

Environmental Disclosure

Catalog

Declaration of conformity

Product Page Link

Product Data Sheet

This product is part of the Harmony iPC range, an offer of Harmony HMIPSO S-Panel PCs. These simple-in-design PCs with Intel Atom dual-core CPU cater for the performance requirements of most automation applications in the field. It features a 10" LCD multi-touch screen with 1280 x 800 pixels display resolution. It is equipped with Intel Atom E3827 dual core at 1.75 GHz processor and pre-installed Windows 10 IoT Enterprise 64 bit multi-language operating system. It comes with 4GB RAM and 128 GB extension back side SSD card storage. This product works at a rated voltage of 24V DC. Its dimensions are 283.1mm (width) x 202.3mm (height) x 85.5mm (depth) and weighs 2.5 kg. The front panel of this PC comes with IP66 degree of protection. It is AS/NZS, C-Tick, CCC, CE, RCM, EAC certified and conforms to UL 61010, UL 121201, CSA C22.2 No 213, CSA C22.2 No 61010-1, IEC 61132-2 standards. Harmony iPC runs at the Edge Control level of EcoStruxure, improves productivity and performance with data management functionality and flexibility.

Products specifications

Attribute name	Attribute value
Main
Operating system	Windows 10 IoT Enterprise 64 bitmulti-language
Display colour	267000 colours
Display size	10.1 inch
Processor name	Intel Atom E3827 dual core at 1.75 GHz
Luminance	300 cd/m²
Free slots	1 CFast, 1 Internal SATA HDD/SSD
Chipset type	Intel Atom SoC
Software package	EcoStruxure augmented operator advisor server augmented operator license not included, EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only, EcoStruxure Operator Terminal Expert run time HMI license not included, EcoStruxture secure connect advisor annual subscription cyber security license not included
Range of product	Harmony iPC
Product or component type	multi-touch screen
Video controller type	Intel HD Graphics
Pixel resolution	4096 x 4096
Complementary
Data storage equipment	128 GB extension back side SSD 1500000 h mtbf
Display type	LED, colour TFT LCD
Type of cooling	passive, fanless
Display size	10" wide multi-touch
Function available	operate with water on screen
Watchdog timer	1-255 ms
[Us] rated supply voltage	100...240 V AC with additional adaptor HMIYPSOMAC1, 24 V DC +/- 20 %
Height	202.3 mm
Aspect ratio	16:9
View angle horizontal x vertical	160 x 160°
Net weight	2.5 kg
Terminal type	touchscreen display
Number of slots	1 mini PCI Express full-size
Number of points	5
Cut-out dimensions	274.6 (+/- 0.7) x 193.8 (+/- 0.4)
Backlight lifespan	50000 hours
Mechanical robustness	hardness anti-scratch 7H
Depth	85.5 mm
Width	283.1 mm
[In] rated current	1.9 A
Local signalling	LED (orange) for stand-by, LED (green) for on, buzzer
Touch panel	projected capacitive technology (PCT)
Memory type	4 GB RAM DDR3 internal
Display resolution	1280 x 800 pixels WSVGA
Main type	Optimised
Environment
Ambient air temperature for storage	-20-60 °C
Ambient air temperature for operation	0-45 °C Mini PCIe, 0-45 °C HDD, 0-55 °C Cfast card, 0-55 °C SSD
Operating altitude	2000
Product certifications	EAC, RCM, CE, CCC, C-Tick, AS/NZS
IP degree of protection	IP66 front panel:
Relative humidity	10-95 % non-condensing
Directives	2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility
Pollution degree	2
Vibration resistance	2 gn (f = 5-500 Hz)Cfast card, 2 gn (f = 5-500 Hz)SSD, 1 gn (f = 5-500 Hz)HDD
Standards	IEC 60950, IEC 61000-6-2, IEC 61000-6-4, CISPR 11, FCC part 15 class A, CSA C22.2 No 60950, UL 60950
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	48.000 cm
Package 1 Width	25.500 cm
Package 1 Length	44.500 cm
Package 1 Weight	4.765 kg
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	75.000 cm
Package 2 Width	80.000 cm
Package 2 Length	120.000 cm
Package 2 Weight	40.000 kg
