SKU:

HMIPSOH752D1801

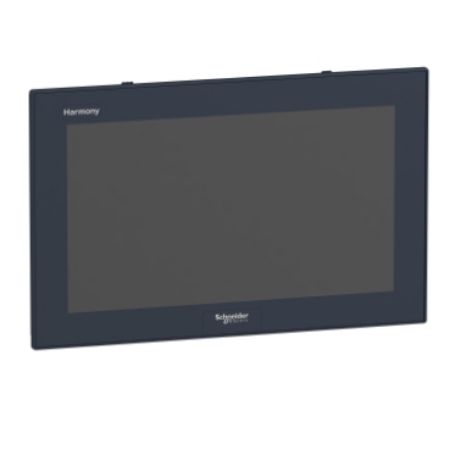

multi touch screen, Harmony iPC, S panel PC optimized, HDD, 15inch wide display, DC, Windows 10

Old price: $5,253.60 INC GST

Price: $4,990.92 INC GST

Qty:

Available for Shipping : 02-Dec-2025

Product Selector

multi touch screen, Harmony iPC, S panel PC optimized, HDD, 15inch wide display, DC, Windows 10

15" wide TFT multi-touch screens, LED backlight, IP66 protection, and 7H hardness anti-scratch front

Maintenance-free non-rotating parts and operation up to +55 °C/131 °F

Integration of software applications such as HMI EcoStruxure Operator Terminal Expert and third-party Windows software

Expansions with optional interfaces based on mini PCIe (Com, USB, HD audio, Video, networks, wireless, etc.)

Available with Windows 10 or without an operating system in Configured-to-order offer

Be the first to review this product

Manufacturer: Schneider Electric

CAD

User guide

Circularity Profile

Environmental Disclosure

Catalog

Declaration of conformity

Product Page Link

Product Data Sheet

This product is part of the Harmony iPC range, an offer of Harmony HMIPSO S-Panel PCs. These simple-in-design PCs with Intel Atom dual-core CPU cater for the performance requirements of most automation applications in the field. It features a 15" LCD multi-touch screen with 1366 x 768 pixels display resolution. It is equipped with Intel Atom E3827 dual core at 1.75 GHz processor and pre-installed Windows 10 IoT Enterprise 64 bit multi-language operating system. It comes with 4GB RAM and 500 GB extension back side enterprise hard disk storage. This product works at a rated voltage of 24V DC. Its dimensions are 419.7mm (width) x 269mm (height) x 86mm (depth) and weighs 3.9 kg. The front panel of this PC comes with IP66 degree of protection. It is AS/NZS, C-Tick, CCC, CE, RCM, EAC certified and conforms to FCC, CSA C22.2 No 60950, IEC 61000-6-4, UL 60950, IEC 61000-6-2 standards. Harmony iPC runs at the Edge Control level of EcoStruxure, improves productivity and performance with data management functionality and flexibility.

Products specifications

Attribute name	Attribute value
Main
Operating system	Windows 10 IoT Enterprise 64 bitmulti-language
Display colour	16777216 colors
Display size	15.6 inch
Free slots	1 CFast, 1 Internal SATA HDD/SSD
Processor name	Intel Atom E3827 dual core at 1.75 GHz
Chipset type	Intel Atom SoC
Software package	EcoStruxure augmented operator advisor server augmented operator license not included, EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only, EcoStruxure Operator Terminal Expert run time HMI license not included, EcoStruxture secure connect advisor annual subscription cyber security license not included
Range of product	Harmony iPC
Luminance	300 cd/m²
Product or component type	multi-touch screen
Video controller type	Intel HD Graphics
Pixel resolution	4096 x 4096
Complementary
Data storage equipment	500 GB extension back side enterprise hard disk
Display type	colour TFT LCD, LED
Type of cooling	fanless, passive
Cut-out dimensions	412.4 (+/- 0.7) x 261.7 (+/- 0.4)
Display size	15" wide multi-touch
Function available	operate with water on screen
Watchdog timer	1-255 ms
[Us] rated supply voltage	100...240 V AC with additional adaptor HMIYPSOMAC1, 24 V DC +/- 20 %
Height	269 mm
Backlight lifespan	50000 hours
Mechanical robustness	hardness anti-scratch 7H
Aspect ratio	16:9
Depth	86 mm
Width	419.7 mm
[In] rated current	1.7 A
Local signalling	LED (orange) for stand-by, LED (green) for on, buzzer
Touch panel	projected capacitive technology (PCT)
Memory type	4 GB RAM DDR3 internal
View angle horizontal x vertical	150 x 140°
Net weight	3.9 kg
Terminal type	touchscreen display
Display resolution	1366 x 768 pixels WXGA
Main type	Optimised
Number of slots	1 mini PCI Express full-size
Number of points	5
Environment
IP degree of protection	IP66 front panel:
Relative humidity	10-95 % non-condensing
Ambient air temperature for storage	-20-60 °C
Directives	2004/108/EC - electromagnetic compatibility, 2006/95/EC - low voltage directive
Pollution degree	2
Ambient air temperature for operation	0-45 °C Mini PCIe, 0-45 °C HDD, 0-55 °C Cfast card, 0-55 °C SSD
Operating altitude	2000
Vibration resistance	2 gn (f = 5-500 Hz)Cfast card, 2 gn (f = 5-500 Hz)SSD, 1 gn (f = 5-500 Hz)HDD
Standards	IEC 61000-6-2, UL 60950, IEC 61000-6-4, CSA C22.2 No 60950, IEC 60950, CISPR 11, FCC part 15 class A
Product certifications	CCC, RCM, CE, EAC, C-Tick, AS/NZS
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	6.2 cm
Package 1 Width	26.9 cm
Package 1 Length	42.0 cm
Package 1 Weight	4.0 kg
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	80 cm
Package 2 Width	105 cm
Package 2 Length	125 cm
Package 2 Weight	49 kg
