SKU:

HMIPSOH552D1801

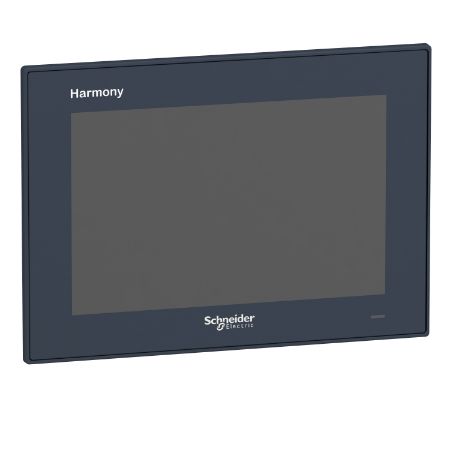

multi touch screen, Harmony iPC, S panel PC optimized, HDD, 10inch wide display, DC, Windows 10

Old price: $4,446.20 INC GST

Price: $4,223.89 INC GST

Qty:

Available for Shipping : 02-Dec-2025

Product Selector

multi touch screen, Harmony iPC, S panel PC optimized, HDD, 10inch wide display, DC, Windows 10

10" wide TFT multi-touch screens, LED backlight, IP66 protection, and 7H hardness anti-scratch front

Maintenance-free non-rotating parts and operation up to +55 °C/131 °F

Integration of software applications such as HMI EcoStruxure Operator Terminal Expert and third-party Windows software

Expansions with optional interfaces based on mini PCIe (Com, USB, HD audio, Video, networks, wireless, etc.)

Available with Windows 10 or without an operating system in Configured-to-order offer

Be the first to review this product

Manufacturer: Schneider Electric

CAD

User guide

Circularity Profile

Environmental Disclosure

Catalog

Declaration of conformity

Product Page Link

Product Data Sheet

This product is part of the Harmony iPC range, an offer of Harmony HMIPSO S-Panel PCs. These simple-in-design PCs with Intel Atom dual-core CPU cater for the performance requirements of most automation applications in the field. It features a 10" LCD multi-touch screen with 1280 x 800 pixels display resolution. It is equipped with Intel Atom E3827 dual core at 1.75 GHz processor and pre-installed Windows 10 IoT Enterprise 64 bit multi-language operating system. It comes with 4GB RAM and 500 GB extension back side enterprise hard disk storage. This product works at a rated voltage of 24V DC. Its dimensions are 283.1mm (width) x 202.3mm (height) x 85.5mm (depth) and weighs 2.5 kg. The front panel of this PC comes with IP66 degree of protection. It is AS/NZS, C-Tick, CCC, CE, RCM, EAC certified and conforms to FCC, CSA C22.2 No 60950, IEC 61000-6-4, UL 60950, IEC 61000-6-2, IEC 60950 standards. Harmony iPC runs at the Edge Control level of EcoStruxure, improves productivity and performance with data management functionality and flexibility.
