SKU:

HMIPEPS952D1801

Multi touch screen, Harmony iPC, Enclosed PC Performance SSD W19 DC Windows 10

Old price: $10,268.50 INC GST
$9,755.08 INC GST
Available for Shipping : 28-Jul-2025

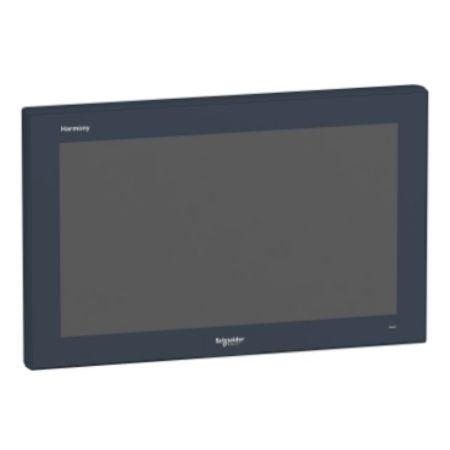

Multi touch screen, Harmony iPC, Enclosed PC Performance SSD W19 DC Windows 10
  • 19'' wide HD TFT multi-touch screens, LED backlight, and 7H hardness anti-scratch front
  • Ready to be VESA mounted with IP65 protection on all sides and M12 connections
  • Slim enclosed panels with 65 mm/2.56 in. depth
  • Maintenance-free non-rotating parts and operation up to +55 °C/131 °F
  • Available with Windows 10 or without an operating system in Configured-to-order offer
Manufacturer: Schneider Electric
This product is part of the Harmony iPC range, an offer of Harmony HMIPEP Enclosed Panel PCs. This PC is fully enclosed PC with IP66 protection on all sides and can be directly mounted on a machine or automation system without any additional enclosure. It features a 19" LCD multi-touch screen with 1366 x 768 pixels display resolution. It is equipped with Intel Core i3 4010U 1.7 GHz processor and pre-installed Windows 10 IoT Enterprise (64-bit Multi-language) operating system. It comes with 8GB DDR3 RAM and 128 GB back side SSD storage. This product works at a rated voltage of 24V DC. Its dimensions are 488mm (width) x 309mm (height) x 65mm (depth) and weighs 8 kg. All sides of this PC comes with IP66 degree of protection. It is AS/NZS, C-Tick, CCC, CE, RCM, EAC certified and conforms to CISPR 11, CSA C22.2, FCC, IEC 60950, IEC 61000-6-2, IEC 61000-6-4, UL 60950 standards. Harmony iPC runs at the Edge Control level of EcoStruxure, improves productivity and performance with data management functionality and flexibility.

Products specifications

Attribute name Attribute value
Main
Operating system Windows 10 IoT Enterprise 64 bitmulti-language
Display colour 16777216 colors
Display size 18.5 inch
Processor name Intel Core i3 4010U 1.7 GHz
Luminance 300 cd/m²
Free slots 1 Internal SATA HDD/SSD
Software package Vijeo Citect DVD SCADA license not included, EcoStruxure augmented operator advisor server augmented operator license not included, EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only, EcoStruxure Operator Terminal Expert run time HMI license not included, EcoStruxture secure connect advisor annual subscription cyber security license not included
Range of product Harmony iPC
Product or component type multi-touch screen
Pixel resolution 4096 x 4096
Complementary
Data storage equipment 128 GB back side SSD 1500000 h mtbf
Display type colour TFT LCD, LED
Type of cooling passive, fanless
Function available operate with water on screen
Watchdog timer 1-255 ms
[Us] rated supply voltage 24 V DC +/- 20 % power supply
Height 309 mm
Power consumption in W 28-60 W
Aspect ratio 16:9
Integrated connection type 2 Ethernet port - M12 female (rate: 10/100/1000 Mbit/s), 1 USB 2.0 type A - M12 female (rate: 1.5/12/480 Mbit/s), 1 RS232 - M12 male (rate: <= 115.2 kbits/s)
View angle horizontal x vertical 160 x 170°
Net weight 8 kg
Terminal type touchscreen display
Number of slots 1 mini PCI Express full-size
Number of points 5
Backlight lifespan 50000 hours
Mechanical robustness hardness anti-scratch 7H
Depth 65 mm
Width 488 mm
Local signalling LED (orange) for stand-by, LED (green) for on, buzzer
Touch panel multi-touch projected capactive technology (PCT)
Memory type 8 GB RAM DDR3 internal
Display resolution 1366 x 768 pixels WXGA
Main type Performance
Environment
Ambient air temperature for storage -20-60 °C
Ambient air temperature for operation 0-45 °C HDD, 0-55 °C SSD
Operating altitude 2000 m
Standards UL 60950, IEC 61000-6-4, IEC 61000-6-2, IEC 60950, FCC part 15 class A,  CSA C22.2 No 60950, CISPR 11
IP degree of protection IP65 all sides:
Relative humidity 10-95 % non-condensing
Directives 2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility
Pollution degree 2
Product certifications RCM, EAC, CCC, AS/NZS, C-Tick, CE
Vibration resistance 2 gn (f = 5-500 Hz) SSD, 1 gn (f = 5-500 Hz) HDD
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.7 cm
Package 1 Width 31.0 cm
Package 1 Length 48.8 cm
Package 1 Weight 7.1 kg
