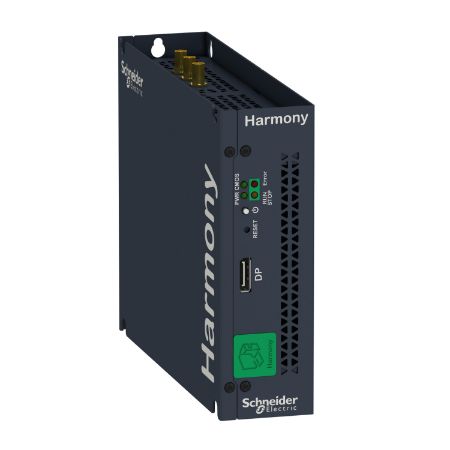

Picture of Modular box PC, Harmony iPC, IIoT DC Base unit 4 GB
SKU:

HMIBMIEA5DD100A

Modular box PC, Harmony iPC, IIoT DC Base unit 4 GB

Old price: $1,973.40 INC GST
$1,874.73 INC GST
Available for Shipping : 26-Nov-2025
Modular box PC, Harmony iPC, IIoT DC Base unit 4 GB
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
User guide
Catalog
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name Modular BOX PC basic Optimized
Processor name Intel Atom E3930 upto 1.8 GHz
Software package EcoStruxure augmented operator advisor server augmented operator license not included, EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only, EcoStruxure Operator Terminal Expert run time HMI license not included, EcoStruxture secure connect advisor annual subscription cyber security license not included, McAfee white listing installer cyber security license not included, Node-RED and system nodes restore IIoT Wiring Operating System Restore
Range of product Harmony iPC
Range compatibility Modular Display HMIDM, iDisplay
Accessory / separate part destination PC panel on HMIDM modular display
Product or component type modular box PC
Complementary
Data storage equipment 128 GB eMMC (soldered)
Type of cooling fanless
Display resolution 3200 x 2000 pixels at 60 Hz
Number of slots available for expansion 1.0 slot(s) for mini PCIe
Supply voltage limits 9.6-28.8 V
Depth 46 mm
Watchdog timer 1-255 ms
Control type ON/OFF button
Height 150 mm
Electrical connection connector, connector type: SMA, 3 ways - location: top, screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom
Width 187 mm
Integrated connection type TPM connector Ver 2.0 for cyber security - hardware encryption TPM module HMIYMINATPM201 to be installed/default installed on motherboard, USB 3.0 port with 1.0 USB type A, transmission rate: 5 Gbit/s on bottom, USB 2.0 port with 1.0 USB type A, transmission rate: 480 Mbit/s on bottom, COM1 serial link for battery backup with 1 male SUB-D 9 RS232/422/485 on bottom non-isolated, Ethernet with 2 RJ45 Realtek 8111G, transmission rate: 10/100/1000 Mbps on bottom IEEE 1588 not supported, display port with 1 on front
Impregnation material conformal coated
Memory description 4 GB RAM DDR3 internal (not expandable)
Mounting location wall mounting, flat mounting, book mounting
Net weight 1.2 kg
Main type Basic Optimised
Cyber secured boot Secure password boot UEFI
Number of slots 1 slot(s) for mini PCI Express full-size with optional interface plate,
Inrush current 2.03 A
[Us] rated supply voltage 100...240 V AC power supply, 24 V DC power supply
Power consumption in W 21.0 W (with Wide 22" display HMIDMA521), 20.0 W (with Wide 19" display HMIDM9521), 19.0 W (with Wide 15" display HMIDM7521), 17.0 W (with 4:3 15" display HMIDM7421), 16.0 W (with Wide 12" display HMIDM6521), 15.0 W (with 4:3 12" display HMIDM6421), 20.0 W (box)
Environment
Relative humidity 10-95 % non-condensing conforming to EN/IEC 60068-2-30
Ambient air temperature for storage -20-60 °C conforming to IEC 60068-2-14, -20-60 °C conforming to IEC 60068-2-2
Directives 2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility
IP degree of protection IP40 conforming to IEC 60529
Electromagnetic compatibility conducted and radiated emissions class A conforming to EN 55022, disturbing field emission class A conforming to EN 55011, immunity to high frequency interference conforming to IEC 61000-4
Product certifications RCM, CCC, EAC, UL 60950 for IT equipments, cULus, CE
Standards UL 60950,  FCC part 15, EN 61131-2, EN 61000-6-4, class A group 1 EN 55011
Ambient air temperature for operation 0-45 °C flat mounting on mini PCIe, 0-45 °C on mini PCIe, 0-50 °C flat mounting, 0-50 °C (by default) conforming to EN/IEC 60068-2-2
Operating altitude 2000 m conforming to EN/IEC 60664-1
Quality labels CE
Vibration resistance 2 gn (f = 5-500 Hz) eMMC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.400 cm
Package 1 Width 21.700 cm
Package 1 Length 32.500 cm
Package 1 Weight 1.558 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 10.311 kg
