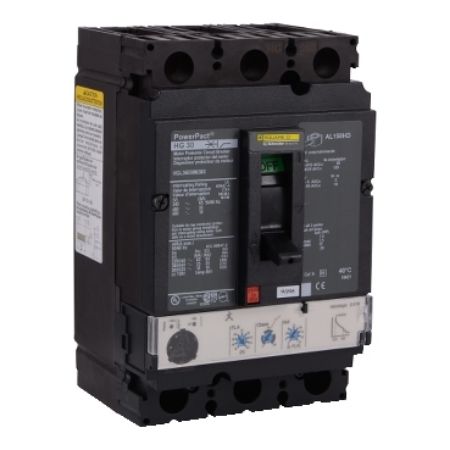

Picture of Motor circuit protector, PowerPacT H, 150A, 3 pole, 600VAC, 18kA, lugs, Micrologic 2.2M, 80%
SKU:

HGL36150M38X

Motor circuit protector, PowerPacT H, 150A, 3 pole, 600VAC, 18kA, lugs, Micrologic 2.2M, 80%

Old price: $3,608.00 INC GST
$3,175.04 INC GST
Available for Shipping : 17-Nov-2025
Motor circuit protector, PowerPacT H, 150A, 3 pole, 600VAC, 18kA, lugs, Micrologic 2.2M, 80%
  • Protect electrical systems from damage caused by oveloads and short circuits
  • integral push-to-trip button in the cover to manually trip the circuit breaker
  • Snap-in terminal makes converting between busbar and lug options easy
  • comply to UL, CSA, NOM, and IEC standards and are CE marked
Be the first to review this product
Manufacturer: Square D
Circularity Profile
Environmental Disclosure
Instruction sheet
Catalog
Product Page Link
Product Data Sheet
PowerPact electronic Motor Circuit Protectors (MCP) are magnetic-only instantaneous-trip circuit breakers. Designed to offer short circuit protection, they are National Electrical Code (NEC) compliant when installed as part of a combination controller having motor overload protection. PowerPact electronic Motor Circuit Protectors has sensor ratings from 30–1200 A at up to 600 Vac. They have Electronic trip units with adjustable instantaneous trip ranges and comes in 3-pole available in unit mount and I-Line construction. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. PowerPact electronic motor circuit protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This PowerPact H, Motor Circuit Protector has a rated current of 15A and is a 3P breaker. This breaker has a breaking capacity of 18 kA@600VAC and has an electronic trip technology. This breaker complies to UL, CE, IEC & CSA standards. Thermal current for this breaker has a magnetic tripping current of 500-1300A. This product comes with an 18 months warranty.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Range PowerPact
Product name PowerPact H
Product or component type Motor Circuit Protector
Complementary
Colour black
AWG gauge AWG 14...AWG 3/0 aluminium/copper terminal
Protection type phase unbalance,  overload protection, short-circuit protection
Quantity per set 1
Suitability for isolation yes conforming to IEC 60947-2
Breaking capacity 20 kA at 500 V DC conforming to UL 489,  20 kA at 250 V DC conforming to UL 489,  18 kA at 600 V AC 50/60 Hz conforming to UL 489,  35 kA at 480 V AC 50/60 Hz conforming to UL 489,  65 kA at 240 V AC 50/60 Hz conforming to UL 489
Continuous current rating 80 %
Wire stripping length 16 mm
Control type toggle
Protected poles description 3t
Tightening torque 14-14 N.m for 10-95 mm² (AWG 8...AWG 3/0), 5-5 N.m for 2.5-6 mm² (AWG 14...AWG 10)
Height 163 mm
Trip unit name MicroLogic 2.2 M
[Ith] conventional free air thermal current 58-130 A
[Ics] rated service breaking capacity 20 kA at 500 V DC conforming to IEC 60947-2, 20 kA at 250 V DC conforming to IEC 60947-2, 18 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 35 kA at 380/440/415 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Depth 86 mm
Width 104 mm
Poles description 3P
Communication interface Ethernet, Modbus
[Ui] rated insulation voltage 750 V conforming to IEC 60947-2
[In] rated current 150-150 A
Utilisation category category A
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
Net weight 2.2 kg
Electrical connection lugs, load, lugs, line
Number of slots 1 slot(s) for voltage release MN or MX (plug-in), 1 slot(s) for overcurrent trip switch SDE (plug-in), 1 slot(s) for alarm switch SD (plug-in), 2 slot(s) for auxiliary switch OF (plug-in)
Breaking capacity code G
Mounting support lug
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-3
Trip unit technology electronic, standard, MicroLogic 2.2 M, LSoI
Terminal identifier AL150HD
Network frequency 50/60 Hz
Mounting mode unit mount (lug)
Environment
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60947-1
IP degree of protection front cover: IP40 conforming to IEC 60529
Product certifications NOM, CSA, UL
Ambient air temperature for operation -25-70 °C
Operating altitude 5000 m with derating, < 2000 m without derating
Quality labels CE
Standards IEC 60947-2, NOM-003-SCFI-2000, NEMA, CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.018 cm
Package 1 Width 18.415 cm
Package 1 Length 21.433 cm
Package 1 Weight 2.268 kg
