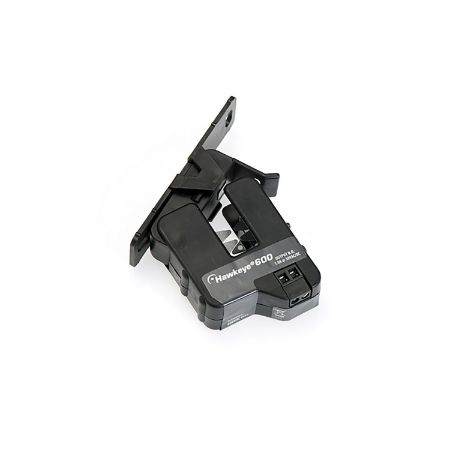

Picture of Current Switch: Fixed Trip Point, 0.15-200 Amp Range, Normally Open 1.0A@30VAC/DC, 0.15A or less Fixed Trip Point, Split-Core Housing
SKU:

H600

Current Switch: Fixed Trip Point, 0.15-200 Amp Range, Normally Open 1.0A@30VAC/DC, 0.15A or less Fixed Trip Point, Split-Core Housing

$94.12 INC GST
Available for Shipping : 28-Jul-2025
Current Switch: Fixed Trip Point, 0.15-200 Amp Range, Normally Open 1.0A@30VAC/DC, 0.15A or less Fixed Trip Point, Split-Core Housing
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Product Page Link
Product Data Sheet
The Veris range of current sensors delivers high performance and reliable current montoring solution for HVAC applications. The current switches are ideal solutions for applications including fan status, belt loss and most variable speed (VSD) applications. Current switches detect changes in a conductor's current/amperage and provide a digital output to Building management system (BMS) controller. The current switches are available in solid core versions for new projects and split core versions to accommodate retrofits. The Veris current sensors are of highest quality and reliability with best in class ergonomics for easy installation. The products are UL certified. Jumperless design and self gripping iris for easy installation. High performance reliable sensors with jumperless and self gripping iris design ensure hasslefree installation. A wide range of product portfolio with low set point suitable for most of new as well as retrofit installation.

Products specifications

Attribute name Attribute value
Main
Device application building automation systems
Output type switch output
Relative humidity 10-90 % RH, non-condensing
Sensor type current switch, AC
Output current 1 A at 30 V AC/DC
Current measurement range 0.15...200 A
AWG gauge AWG 24...AWG 14
Product or component type sensor
Opening width 12 mm
Type of measurement AC current
Mounting support split core housing
Range of product HX00 Series
Ambient air temperature for operation -15-50 °C
Network frequency 50...60 Hz
Product certifications CE, UL
Setpoint Yes
Sensor model H600
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.810 cm
Package 1 Width 10.160 cm
Package 1 Length 12.700 cm
Package 1 Weight 81.647 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 27.940 cm
Package 2 Width 34.290 cm
Package 2 Length 45.720 cm
Package 2 Weight 8.618 kg
