SKU:

GV3P731

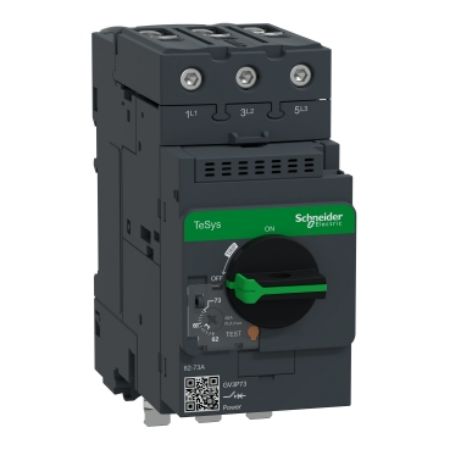

Motor circuit breaker,TeSys Deca frame 3,3P,62-73A,thermal magnetic,EverLink,without downstream

Old price: $727.10 INC GST

Price: $458.07 INC GST

Qty:

Available for Shipping : 19-Aug-2025

Product Selector

Motor circuit breaker,TeSys Deca frame 3,3P,62-73A,thermal magnetic,EverLink,without downstream

New modern look & feel of all machines

Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)

Easier to install and operate with multi-standard screws

Safe and long-lasting power connection with EverLink terminals

Digital customer experience for technical documents

Maintenance guide via EcoStruxureTM Facility Expect

Be the first to review this product

Manufacturer: Schneider Electric

Instruction sheet

User guide

Circularity Profile

Environmental Disclosure

Product Page Link

Product Data Sheet

TeSys GV motor circuit breaker, 3 poles (3P), 73A/690V, for 3-phase motor applications 37kW@400V. It provides a thermal-magnetic protection with a thermal setting range 62-73A, magnetic tripping at 15xIn, high breaking capacity Icu 50kA@400V. Upstream connection by Everlink BTR screw terminals, without downstream power terminal block for a direct assembly with a LC1D40A to D80A contactor. Start-stop control by rotary knob guaranteed for 20 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	GV3P
Device application	motor protection
Range	TeSys Deca
Range of product	TeSys GV3
Trip unit technology	thermal-magnetic
Product name	TeSys Deca, TeSys GV3
Product or component type	motor circuit breaker
Complementary
Colour	dark grey
Compatibility code	GV3P
Mechanical durability	50000 cycles
Tightening torque	5 N.m - on screw clamp terminal
Suitability for isolation	yes conforming to IEC 60947-1
Breaking capacity	6 kA Icu at 690 V AC 50/60 Hz, 12 kA Icu at 500 V AC 50/60 Hz, 50 kA Icu at 440 V AC 50/60 Hz, 50 kA Icu at 400/415 V AC 50/60 Hz, 65 kA Icu at 230/240 V AC 50/60 Hz
Electrical durability	20000 cycles for AC-3 at 415 V In
Power dissipation per pole	8 W
Control type	rotary handle
[Ics] rated service short-circuit breaking capacity	50 % at 690 V AC 50/60 Hz, 50 % at 500 V AC 50/60 Hz, 60 % at 440 V AC 50/60 Hz, 60 % at 400/415 V AC 50/60 Hz, 100 % at 230/240 V AC 50/60 Hz
Fixing mode	panel: screwed (with 3 x M4 screws), 35 mm symmetrical DIN rail: clipped
Maximum operating rate	25 cyc/h
Magnetic tripping current	1120-1120 A
Phase failure sensitivity	yes conforming to IEC 60947-4-1
Height	132 mm
Network frequency	50/60 Hz
Depth	136 mm
Width	55 mm
Poles description	3P
Direct connector	with
Thermal protection adjustment range	62-73 A conforming to IEC 60947-4-1
[Ui] rated insulation voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-2
Net weight	0.96 kg
Utilisation category	AC-3 conforming to IEC 60947-4-1
Motor power kW	55-55 kW at 690 V AC 50/60 Hz, 45-45 kW at 500 V AC 50/60 Hz, 37-37 kW at 400/415 V AC 50/60 Hz
[Ith] conventional free air thermal current	73 A conforming to IEC 60947-4-1
Network type	AC
Rated duty	continuous conforming to IEC 60947-4-1
[Ue] rated operational voltage	690 V AC 50/60 Hz
[In] rated current	73 A
Environment
Fire resistance	960 °C conforming to IEC 60695-2-11
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for storage	-40-80 °C
Climatic withstand	conforming to IACS E10
Ambient air temperature for operation	-20-60 °C
Mechanical robustness	vibrations: 4 Gn, 5...300 Hz, shocks: 30 Gn for 11 ms contactor closed, shocks: 5 Gn for 11 ms contactor open
IK degree of protection	IK09 enclosure
Operating altitude	3000 m
Standards	CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-2
Product certifications	UKCA, DNV-GL, ABS, BV, LROS (Lloyds register of shipping), ATEX, EAC, CSA, UL, CCC
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	15.800 cm
Package 1 Width	6.500 cm
Package 1 Length	14.600 cm
Package 1 Weight	1.016 kg
