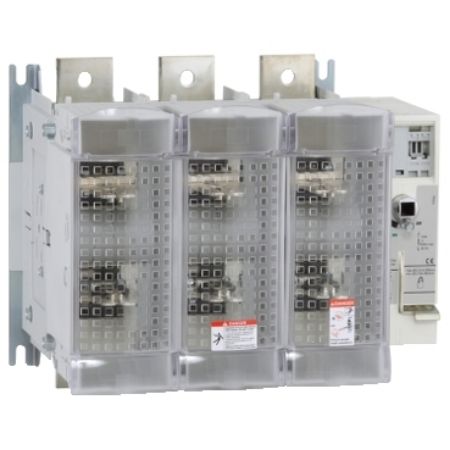

Picture of Switch disconnector fuse, TeSys GS, 3P, 630A, fuse type DIN, size 3
SKU:

GS2S3

Switch disconnector fuse, TeSys GS, 3P, 630A, fuse type DIN, size 3

Old price: $3,707.00 INC GST
$2,335.41 INC GST
Available for Shipping : 12-Aug-2025
Switch disconnector fuse, TeSys GS, 3P, 630A, fuse type DIN, size 3
  • Equipped with an External front side or right-hand side-mounted operators
  • Lockable with door interlock
  • To be used with DIN blade fuse links
  • High short circuit performance up to 100 KA
  • Robust and compact handles
  • Effective protection thanks to fuse speed fusion
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Circularity Profile
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
TeSys GS fuse switch-disconnector, 3 poles (3P), 630A/1000V, to be used with DIN blade fuse links size 3 up to 630A, for motor applications up to 355kW@400V AC-23. To be equipped with a direct operating handle GS1AH104 (to be ordered separately), or with an external operating handle GS2AH that can be front side, left-hand side, or right-hand side mounting (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@400V. Add-on auxiliary contact modules GS1AM (front mounting), GS1AN (side mounting), GS1AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately). Type aM and gG size 3 blade fuse links without strickers DF2KA, DF2KN and with strickers DF4KA, DF4KN are available (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GS2S
Poles description 3P
Fuse type DIN
[Ie] rated operational current 630 A at 400 V AC-23B, 630 A at 400 V AC-23A, 500 A at 500 V AC-23B, 500 A at 500 V AC-23A, 400 A at 690 V AC-23B, 315 A at 690 V AC-23A, 630 A at 440 V 2 poles in series per phase with terminal covers DC-23B, 400 A at 440 V 2 poles in series per phase with terminal covers DC-23A
Contacts type and composition 3 NO
Range TeSys
Product name TeSys GS
Product or component type switch-disconnector-fuse
Protected poles description 3t
Network type DC, AC
[Ith] conventional free air thermal current 630 A (at 40 °C)
Fuse size 3
Network frequency 50/60 Hz
Complementary
Breaking capacity 5040 A at 400 V (AC-23B), 60 W
Rated operational power in W 400 kW at 690 V, 355 kW at 500 V, 355 kW at 400 V, 295 kW at 690 V
Tightening torque power circuit: 44-44 N.m
Compatibility code GS2S
Mechanical durability 8000 cycles
Electrical durability 200 cycles DC-23B, 200 cycles DC-23A, 1000 cycles AC-23B, 1000 cycles AC-23A
[Icm] rated short-circuit making capacity 100 kA at 400 V with protection by gG fuses
[Ui] rated insulation voltage 1000 V AC 50/60 Hz
Short-circuit withstand 70 kA
[Uimp] rated impulse withstand voltage 12 kV
Making capacity 6300 A at 400 V AC-23B
Connections - terminals power circuit: lugs-ring terminals 2 cable(s) 300-300 mm², power circuit: lugs-ring terminals 2 cable(s) 150-150 mm², power circuit: bars63-63 mm²
Mounting support plate
Type of operating handle direct frontal, external frontal, external right side
Environment
Depth 250 mm
Width 364 mm
Fire resistance 960 °C body conforming to IEC 60695-2-1, 850 °C fuse cover conforming to IEC 60695-2-1
IP degree of protection IP20 conforming to IEC 60529 (with terminal cover)
Ambient air temperature for storage -40-80 °C
Net weight 16 kg
Standards IEC 60947-3
Ambient air temperature for operation -20-70 °C
Height 300 mm
Product certifications CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 40.000 cm
Package 1 Width 52.000 cm
Package 1 Length 44.000 cm
Package 1 Weight 16.962 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 42.424 kg
