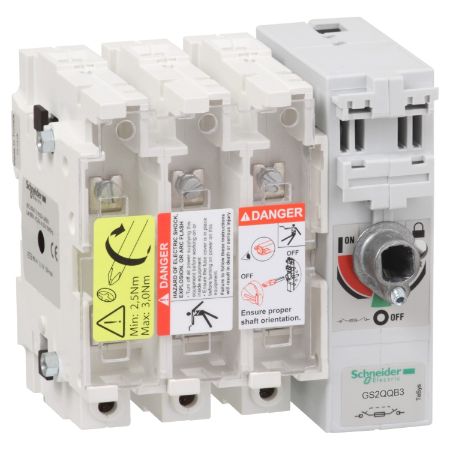

Picture of Switch disconnector fuse, TeSys GS, 3P, 400A, fuse type BS, size B1, B2, B3, B4
SKU:

GS2QQB3

Switch disconnector fuse, TeSys GS, 3P, 400A, fuse type BS, size B1, B2, B3, B4

Old price: $2,164.80 INC GST
$1,363.82 INC GST
Available for Shipping : 12-Aug-2025
Switch disconnector fuse, TeSys GS, 3P, 400A, fuse type BS, size B1, B2, B3, B4
  • Equipped with an External front side or right-hand side-mounted operators
  • Lockable with door interlock
  • To be used with type BS fuse links
  • High short circuit performance up to 100 KA
  • Robust and compact handles
  • Effective protection thanks to fuse speed fusion
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Circularity Profile
Instruction sheet
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
TeSys GS fuse switch-disconnector, 3 poles (3P), 400A/800V, to be used with type BS fuse links size B1-B4 up to 400A, for motor applications up to 220kW@400V AC-23. To be equipped with an external front side or right-hand side mounting operating handle GS2AH (several models available). Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP43 (to be ordered separately), it provides high short circuit current rating 100kA@400V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GS2Q
Poles description 3P
Fuse type BS
[Ie] rated operational current 400 A at 400 V AC-23B, 400 A at 400 V AC-23A, 315 A at 500 V AC-23B, 315 A at 500 V AC-23A, 250 A at 690 V AC-23A, 315 A at 440 V 2 poles in series per phase and not juxtaposed DC-23B, 200 A at 440 V 2 poles in series per phase and not juxtaposed DC-23A
Contacts type and composition 3 NO
Range TeSys
Product name TeSys GS
Product or component type switch-disconnector-fuse
Protected poles description 3t
Network type DC, AC
[Ith] conventional free air thermal current 400 A (at 40 °C)
Fuse size B3, B1, B2, B4
Network frequency 50/60 Hz
Complementary
Breaking capacity 3200 A at 400 V (AC-23B)
Rated operational power in W 95 kW at 690 V, 220 kW at 400 V, 220 kW at 500 V, 220 kW at 690 V
Tightening torque power circuit: 25-25 N.m
Compatibility code GS2Q
Mechanical durability 10000 cycles
Electrical durability 200 cycles DC-23B, 200 cycles DC-23A, 1000 cycles AC-23B, 1000 cycles AC-23A
[Icm] rated short-circuit making capacity 50 kA at 400 V with protection by gG fuses
[Ui] rated insulation voltage 800 V AC 50/60 Hz
Short-circuit withstand 40 kA
[Uimp] rated impulse withstand voltage 8 kV
Making capacity 4000 A at 400 V AC-23B
Connections - terminals power circuit: lugs-ring terminals185-240 mm², power circuit: bars45-45 mm²
Mounting support plate
Type of operating handle external right side, external frontal
Environment
Depth 149 mm
Width 252 mm
Fire resistance 960 °C body conforming to IEC 60695-2-1, 850 °C fuse cover conforming to IEC 60695-2-1
IP degree of protection IP20 conforming to IEC 60529 (with terminal cover)
Ambient air temperature for storage -40-80 °C
Net weight 4.8 kg
Standards IEC 60947-3
Ambient air temperature for operation -20-70 °C
Height 205 mm
Product certifications CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 22.000 cm
Package 1 Width 22.500 cm
Package 1 Length 36.000 cm
Package 1 Weight 4.673 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 10.117 kg
