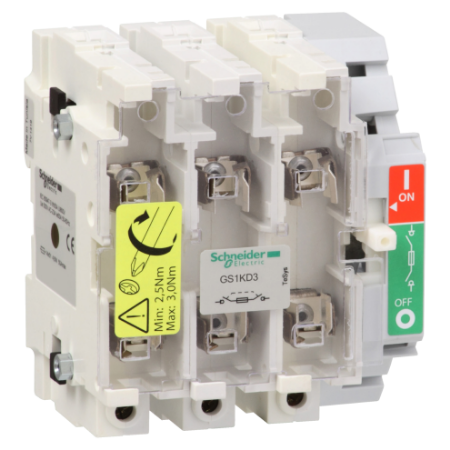

Picture of Switch disconnector fuse, TeSys GS, 3P, 3NO, 125A, 11W, fuse type NFC, size 22x58mm
SKU:

GS1KD3

Switch disconnector fuse, TeSys GS, 3P, 3NO, 125A, 11W, fuse type NFC, size 22x58mm

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Switch disconnector fuse, TeSys GS, 3P, 3NO, 125A, 11W, fuse type NFC, size 22x58mm
  • Equipped with an External front side or right-hand side-mounted operators
  • Lockable with door interlock
  • To be used with NFC cylindrical fuse links
  • High short circuit performance up to 100 KA
  • Robust and compact handles
  • Effective protection thanks to fuse speed fusion
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Declaration of conformity
End of life manual
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
TeSys GS fuse switch-disconnector, 3 poles (3P), 125A/750V, to be used with NFC cylindrical fuse links size 22x58mm up to 125A, for motor applications up to 63kW@400V AC-23. To be equipped with a direct operating handle GS1AH02 (to be ordered separately), for using an external operating handle select a fuse switch-disconnector type GS2K. Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP33 (to be ordered separately), it provides high short circuit current rating 100kA@400V. Add-on auxiliary contact modules GS1AM (front mounting), GS1AN (side mounting), GS1AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately). Type aM and gG 22x58mm cylindrical fuse links without strickers DF2FA, DF2FN and with strickers DF3FA, DF3N are available (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GS1 K
Device application protection
Poles description 3P
Fuse type NFC
[Ie] rated operational current 125 A at 500 V AC-23B, 125 A at 500 V AC-23A, 125 A at 400 V AC-23B, 125 A at 400 V AC-23A, 100 A at 690 V with terminal cover AC-23B, 100 A at 690 V with terminal cover AC-23A, 100 A at 440 V 2 poles in series per phase DC-23B, 100 A at 440 V 2 poles in series per phase DC-23A
Contacts type and composition 3 NO
Range TeSys
Product name TeSys GS
Product or component type switch-disconnector-fuse
Protected poles description 3t
Network type AC, DC
[Ith] conventional free air thermal current 125 A (at 40 °C)
Fuse size 22 x 58 mm
Network frequency 50/60 Hz
Complementary
Breaking capacity 1000 A at 400 V (AC-23B), 11 W
Rated operational power in W 90 kW at 500 V, 63 kW at 400 V, 90 kW at 690 V
Tightening torque power circuit: 12-12 N.m - on lugs-ring terminals, power circuit: 12-12 N.m - on bars
Compatibility code GS1 K
Mechanical durability 10000 cycles
Electrical durability 1000 cycles AC-23B, 1000 cycles AC-23A
[Icm] rated short-circuit making capacity 100 kA at 400 V with protection by gG fuses
[Ui] rated insulation voltage 750 V AC 50/60 Hz
Short-circuit withstand 20 kA
[Uimp] rated impulse withstand voltage 8 kV
Making capacity 1250 A at 400 V AC-23B
Connections - terminals power circuit: lugs-ring terminals35-95 mm² flexible, power circuit: bars
Mounting support plate
Type of operating handle direct right side
Environment
Depth 116 mm
Width 150 mm
Fire resistance 960 °C body conforming to IEC 60695-2-1, 850 °C fuse cover conforming to IEC 60695-2-1
IP degree of protection IP20 conforming to IEC 60529 (with terminal cover)
Protective treatment TH
Ambient air temperature for storage -40-80 °C
Net weight 1.5 kg
Standards IEC 60947-3
Ambient air temperature for operation -20-70 °C
Height 162 mm
Product certifications CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 20.0 cm
Package 1 Width 25.5 cm
Package 1 Length 20.0 cm
Package 1 Weight 1.73 kg
Unit Type of Package 2 2
Number of Units in Package 2 27
Package 2 Height 75.0 cm
Package 2 Width 60.0 cm
Package 2 Length 80.0 cm
Package 2 Weight 60.061 kg
