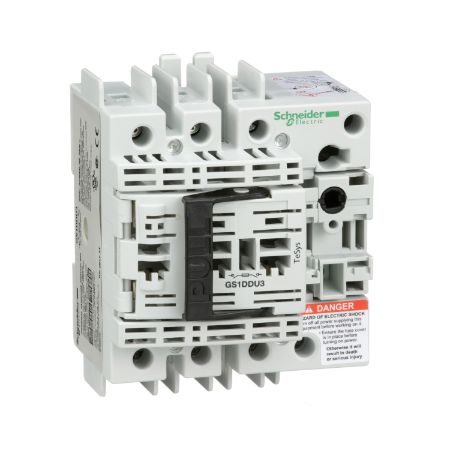

Picture of Switch disconnector fuse, TeSys GS, 3P, 30A, fuse type UL, fuse size CC
SKU:

GS1DDU3

Switch disconnector fuse, TeSys GS, 3P, 30A, fuse type UL, fuse size CC

Old price: $484.55 INC GST
$305.27 INC GST
Available for Shipping : 12-Aug-2025
Switch disconnector fuse, TeSys GS, 3P, 30A, fuse type UL, fuse size CC
  • Equipped with an external front side mounting operating handle
  • Lockable with door interlock
  • To be used with type BS fuse links
  • High short circuit performance up to 100 KA
  • Robust and compact handles
  • Effective protection thanks to fuse speed fusion
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet
TeSys GS fuse switch-disconnector, 3 poles (3P), 30A/800V, to be used with class CC fuse links up to 30A, for motor applications up to 15kW@400V AC-23. To be equipped with a direct operating handle GS1AH106 (to be ordered separately), or with an external front side mounting operating handle (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@600V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). UL/CSA certified, Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GS1 DD
Device application protection
Poles description 3P
Fuse type UL
[Ie] rated operational current 30 A
Contacts type and composition 3 NO
Range TeSys
Design compact
Product name TeSys GS
Product or component type switch-disconnector-fuse
Protected poles description 3t
Network type DC, AC
[Ith] conventional free air thermal current 30 A (at 40 °C)
Fuse size CC
Network frequency 50/60 Hz
Complementary
Rated operational power in W 25 kW at 690 V, 18.5 kW at 500 V, 15 kW at 400 V
Tightening torque power circuit: 3-3 N.m
Compatibility code GS1 DD
Mechanical durability 10000 cycles
Electrical durability 6000 cycles
[Ui] rated insulation voltage 690 V
Short-circuit withstand 5.5 kA
[Uimp] rated impulse withstand voltage 8 kV
Connections - terminals power circuit: lugs-ring terminals2-6 mm²
Mounting support plate, rail
Type of operating handle direct frontal, external frontal
Environment
Depth 83.5 mm
Width 97 mm
Fire resistance 960 °C body conforming to IEC 60695-2-1
IP degree of protection IP20 conforming to IEC 60529 (with terminal cover)
Ambient air temperature for storage -40-80 °C
Net weight 0.6 kg
Standards CSA C22.2 No 5, UL 489
Ambient air temperature for operation -20-70 °C
Height 116 mm
Product certifications ASEFA, LOVAG, LROS (Lloyds register of shipping)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.500 cm
Package 1 Width 13.500 cm
Package 1 Length 15.500 cm
Package 1 Weight 558.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.875 kg
Unit Type of Package 3 3
Number of Units in Package 3 64
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 54.204 kg
