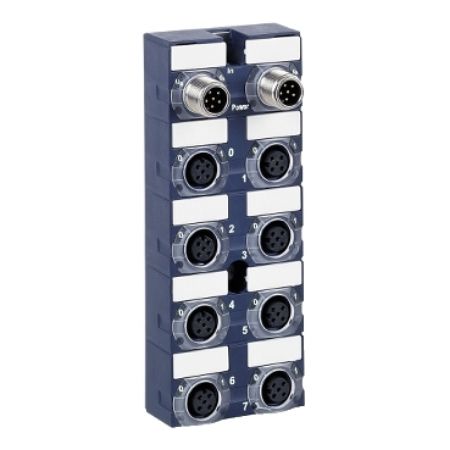

Picture of compact IP67 modular I/O splitter box - Advantys FTM - 16 I/O - 24 V DC
SKU:

FTM1DD16C12

compact IP67 modular I/O splitter box - Advantys FTM - 16 I/O - 24 V DC

Old price: $1,289.20 INC GST
$1,224.74 INC GST
Available for Shipping : 11-Aug-2025
compact IP67 modular I/O splitter box - Advantys FTM - 16 I/O - 24 V DC
Be the first to review this product
Manufacturer: Telemecanique
User guide
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Input/output number 16
Product compatibility with 2-wire/3-wire sensors
Discrete output number 0-16
Product or component type IP67 modular I/O splitter box
Electrical connection 8 female connectors M12 (sensor or actuator), 1 male connector M12 (bus module or previous module), 1 male connector M12 (auxiliary actuator power supply)
Range of product Advantys FTM
Discrete input number 0-16
Splitter box type compact
Complementary
Switching frequency <= 50 Hz resistive load, <= 5 Hz inductive load
Reverse polarity protection internal
Net weight 0.22 kg
Maximum auxiliary supply current 4 A
Discrete output current 500 mA
Control threshold undervoltage 0-18 V
Discrete input current 200 mA
Maximum tungsten load 10 W
Operating position any position
Discrete output voltage type DC
Discrete input voltage type DC
Fixing mode by 2 screws
[Ue] rated operational voltage 24 V DC
Input filtering 1 ms
Maximum supply current 4 A
Status LED 1 LED ssr pwr sply dgtc + com status, 1 LED auxiliary supply power on, 1 LED actuator power supply diagnostics, 1 LED per channel (yellow) channel status
Discrete input voltage 24 V
Tightening torque 1.5 N.m for M4 screw(s)
Discrete input logic positive
Response time on output 0...0.5 ms
Internal current consumption 50 mA
Output connection cable size 0.75 mm², cable length <10 m, 0.34 mm², cable length <5 m
Surge withstand 0.5 kV power supply conforming to IEC 61000-4-5, 0.5 kV ground/PE conforming to IEC 61000-4-5, 1 kV signal conforming to IEC 61000-4-5, -1 kV signal conforming to IEC 61000-4-5
Discrete output type transistor
Discrete output voltage 24 V
Sensor power supply 18-30 V
Environment
Operating altitude 0...2000 m
Resistance to fast transients 2 kV (signal) conforming to IEC 61000-4-4, -2 kV (signal) conforming to IEC 61000-4-4, 2 kV (power supply) conforming to IEC 61000-4-4, -2 kV (power supply) conforming to IEC 61000-4-4
IP degree of protection IP67
Shock resistance 50 gn for 11 ms conforming to IEC 68-2-27, EA tests
Resistance to electrostatic discharge 8 kV in air conforming to IEC 61000-4-2, -8 kV in air conforming to IEC 61000-4-2, 4 kV in contact conforming to IEC 61000-4-2, -4 kV in contact conforming to IEC 61000-4-2
Standards IEC 1131-2 Type 2
Resistance to radiated fields 10 V/m conforming to IEC 61000-4-3
Ambient air temperature for storage -25-70 °C
Ambient air temperature for operation 0-55 °C
Resistance to conducted disturbances 10 V conforming to IEC 61000-4-6
Vibration resistance 15 gn conforming to IEC 68-2-6
Product certifications cULus
