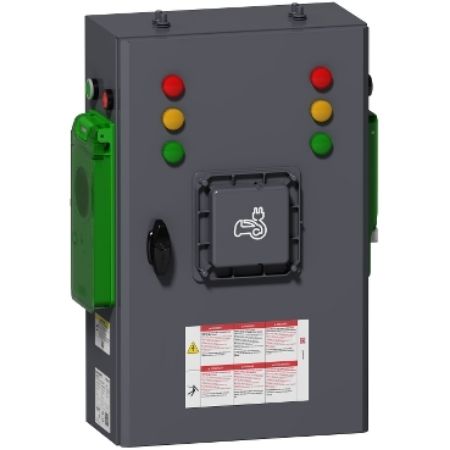

Picture of EVlink Parking Spare Part Enclosure Grey 22kW 2xT2 with shutter RFID
SKU:

EVP2PE2244R

EVlink Parking Spare Part Enclosure Grey 22kW 2xT2 with shutter RFID

$8,008.00 INC GST
Available for Shipping : 09-Nov-2025
EVlink Parking Spare Part Enclosure Grey 22kW 2xT2 with shutter RFID
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Poles description 1P + N for control circuit, 3P + N for power circuit
Device short name EVP2
Socket outlet type 2 x T2S
Socket-outlet type right side: T2 with shutter / silver plated contacts
Maximum supply current 32 A for T2 with shutter
Mounting mode floor-standing, wall-mounted
Access control system badge RFID conforming to ISO/IEC 15693, badge RFID conforming to ISO/IEC 14443
Nominal output power 22 kW for T2 with shutter
Range EVlink
Product name EVlink parking
Product or component type enclosure
Earthing system TT, TN, IT
Socket number 2
Range compatibility EVlink EVlink parking EVW2 charging station, EVlink EVlink parking EVF2 charging station
Offer type standard
[Us] rated supply voltage 380...415 V AC 50/60 Hz power circuit, 230 V AC 50/60 Hz control circuit
Complementary
Web server embedded
Depth 206 mm
Width 400 mm
Colour grey (RAL 7016)
Ethernet service configuration via web server
Control type 2 green illuminated push-button, function: start/unlock flap, 2 red push-button, function: stop
Net weight 20 kg
Local signalling not operational: 2 LED (red) on front, reserved: 2 LED (orange) on front, available: 2 LED (green) on front, on charge: 2 LED (green) (flashing) on side
Height 625 mm
Environment
Operating altitude 0...2000 m conforming to IEC 61851-22
IK degree of protection IK10 socket-outlet conforming to IEC 61851-22, IK10 charging station conforming to IEC 61851-22
Ambient air temperature for storage -40-80 °C
Relative humidity 0-95 %
IP degree of protection IP54 on load conforming to IEC 61851-1, IP54 off load conforming to IEC 61851-1
Ambient air temperature for operation -25-50 °C conforming to IEC 61851-22
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 25.000 cm
Package 1 Width 50.000 cm
Package 1 Length 70.000 cm
Package 1 Weight 18.029 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 50.000 cm
Package 2 Width 80.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 47.500 kg
