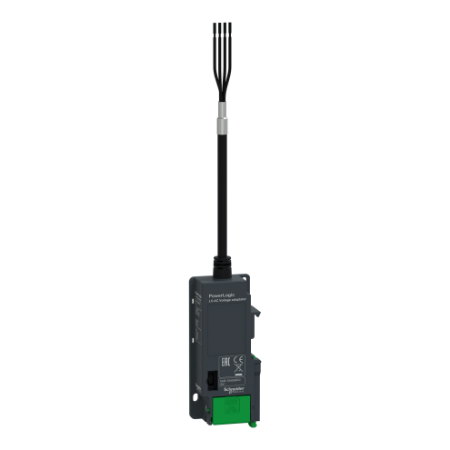

Picture of PowerLogic voltage adapter, from 110 to 400 VAC, 4 wires, overvoltage cat III, 4 wires, RJ45 output to LV150
SKU:

EMS59574

PowerLogic voltage adapter, from 110 to 400 VAC, 4 wires, overvoltage cat III, 4 wires, RJ45 output to LV150

Old price: $861.66 INC GST
$775.49 INC GST
Available for Shipping : 14-Aug-2025
PowerLogic voltage adapter, from 110 to 400 VAC, 4 wires, overvoltage cat III, 4 wires, RJ45 output to LV150
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet
This adaptor Easergy T300 is required for voltage sensor used with SC150 module. The Un rated voltage is 110 to 240 Kv. The input voltage Phase-to-phase 38VAC to 400VAC and 22 VAC to 240 VAC for Phase-to-neutral. It include 4 wires inputs, and RJ45 communication port for output. The operating and storage temperature is -40°C to + 85°C. Mechanical dimensions are 43 mm in height, 48 mm in width and 175 mm in length.

Products specifications

Attribute name Attribute value
Main
Product or component type voltage adaptor
Range of product PowerLogic T300
Complementary
Rated voltage 110-240 V (L-N)
Input voltage 22...240 V AC (L-N), 38...400 V AC (L-L)
Overvoltage category IV
Input voltage limits 630 V (L-L)
Electrical connection input: 4 wires 1-1 mm², output: connector RJ45
Network frequency 50/60 Hz
Environment
Operating altitude <= 3000 m
Width 48 mm
Fire resistance 850 °C conforming to IEC 60695-2-11
Relative humidity 95-95 % conforming to IEC 60068-2-30
Ambient air temperature for storage -40-85 °C
Net weight 0.15 kg
Length 175 mm
Environmental characteristic salt mist: 200 h conforming to IEC 60068-2-11
Mounting support DIN rail
Ambient air temperature for operation -40-85 °C
Height 43 mm
IK degree of protection IK07 conforming to IEC 62262
Product certifications CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.500 cm
Package 1 Width 5.900 cm
Package 1 Length 17.600 cm
Package 1 Weight 178.000 g
Unit Type of Package 2 2
Number of Units in Package 2 25
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.800 kg

Related products

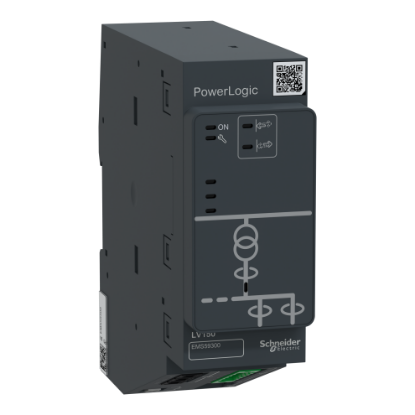

Picture of PowerLogic LV150: low voltage power monitoring and transformer thermal monitoring
