SKU:

DZ5CEB025D

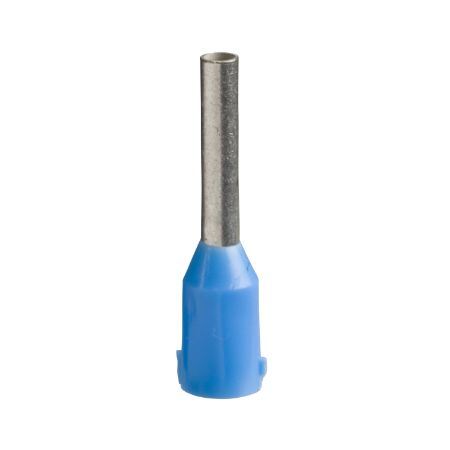

Cable ends, Linergy TR cable ends, single conductor, blue, 2.5mm², for insulated cable, medium size, 1 bag

Old price: $0.69 INC GST

Price: $0.62 INC GST

Qty:

Available for Shipping : 12-Aug-2025

Cable ends, Linergy TR cable ends, single conductor, blue, 2.5mm², for insulated cable, medium size, 1 bag

Manufacturer: Schneider Electric

Circularity Profile

Declaration of conformity

Catalog

Environmental Disclosure

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Quantity per set	10 sets of 50
Cable end size	medium
Cable cross section	2.5-2.5 mm²
Type of packing	bag
Product or component type	cable end
Standards	DIN 46228-4
Range of product	Linergy
Complementary
CAD overall depth	14 mm
CAD overall width	5 mm
Tube diameter	2.5 mm
Additional information	without marker tag holder
Tube material	copper conforming to ISO 1337
Bezel material	halogen-free plastic
Colour	blue
AWG gauge	AWG 14
CAD overall height	5 mm
Net weight	0.72 kg
Length	14 mm
Cable end type	single conductor
Number of cables	1
Bezel size	Ø 4.7 mm
Tube length	8 mm
Environment
Ambient air temperature for operation	-20-105 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	0.400 cm
Package 1 Width	0.400 cm
Package 1 Length	1.400 cm
Package 1 Weight	0.100 g
Unit Type of Package 2	2
Number of Units in Package 2	500
Package 2 Height	4.000 cm
Package 2 Width	7.000 cm
Package 2 Length	12.000 cm
Package 2 Weight	74.000 g
Unit Type of Package 3	3
Number of Units in Package 3	20000
Package 3 Height	15.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	3.320 kg
