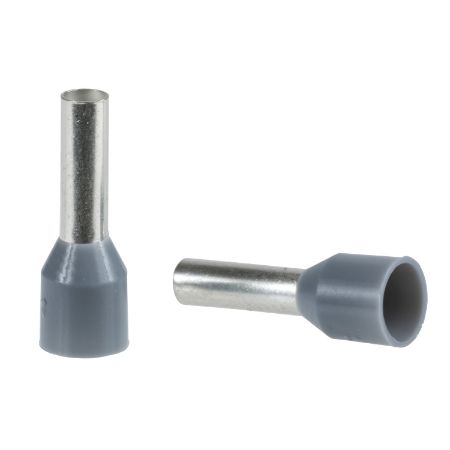

Picture of Cable ends, Linergy TR cable ends, single conductor, grey, 0.75 mm², for insulated cable, medium size, 1 bag
SKU:

DZ5CEB007D

Cable ends, Linergy TR cable ends, single conductor, grey, 0.75 mm², for insulated cable, medium size, 1 bag

Old price: $0.57 INC GST
$0.51 INC GST
Available for Shipping : 24-Sep-2025
Cable ends, Linergy TR cable ends, single conductor, grey, 0.75 mm², for insulated cable, medium size, 1 bag
  • Linergy cable end insulated without marker tag holder
  • Packing by string of bags and quantity per set is 10 sets of 100
  • Releasing pressure on the sides stops the flow of cable ends
  • Single conductor cable ends available in three different lengths
  • No need to use other marking accessories for cables
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Circularity Profile
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Quantity per set 10 sets of 50
Cable end size medium
Cable cross section 0.75-0.75 mm²
Type of packing bag
Product or component type cable end
Standards DIN 46228-4
Range of product Linergy
Complementary
CAD overall depth 14 mm
CAD overall width 3 mm
Tube diameter 1.5 mm
Additional information without marker tag holder
Tube material copper conforming to ISO 1337
Bezel material halogen-free plastic
Colour grey
AWG gauge AWG 20
CAD overall height 3 mm
Net weight 0.47 kg
Length 14 mm
Cable end type single conductor
Number of cables 1
Bezel size Ø 3.3 mm
Tube length 8 mm
Environment
Ambient air temperature for operation -20-105 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.400 cm
Package 1 Width 0.400 cm
Package 1 Length 1.400 cm
Package 1 Weight 0.100 g
Unit Type of Package 2 2
Number of Units in Package 2 500
Package 2 Height 1.500 cm
Package 2 Width 7.000 cm
Package 2 Length 21.000 cm
Package 2 Weight 46.000 g
Unit Type of Package 3 3
Number of Units in Package 3 25000
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 2.744 kg
