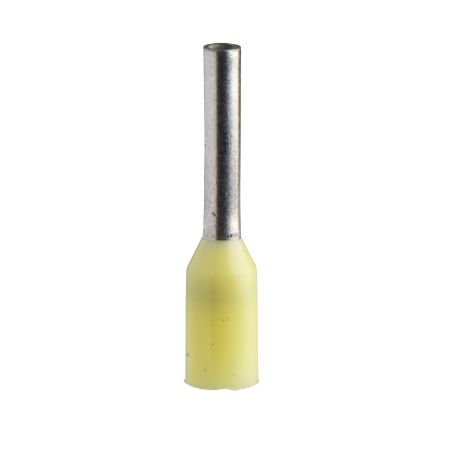

Picture of Cable ends, Linergy TR cable ends, single conductor, yellow, 6mm², for insulated cable, medium size, 10 sets of 100
SKU:

DZ5CE062D

Cable ends, Linergy TR cable ends, single conductor, yellow, 6mm², for insulated cable, medium size, 10 sets of 100

Old price: $0.69 INC GST
$0.62 INC GST
Available for Shipping : 12-Aug-2025
Cable ends, Linergy TR cable ends, single conductor, yellow, 6mm², for insulated cable, medium size, 10 sets of 100
  • Linergy cable end insulated without marker tag holder
  • Packing by string of bags and quantity per set is 1 sets of 100
  • Releasing pressure on the sides stops the flow of cable ends
  • Single conductor cable ends available in three different lengths
  • No need to use other marking accessories for cables
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Catalog
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 100
Cable end size medium
Cable cross section 6-6 mm²
Type of packing individual bag
Product or component type cable end
Standards DIN 46228-4
Range of product Linergy
Complementary
CAD overall depth 20 mm
CAD overall width 7 mm
Tube diameter 3.9 mm
Additional information without marker tag holder
Tube material copper conforming to ISO 1337
Bezel material halogen-free plastic
Colour yellow
AWG gauge AWG 10
CAD overall height 7 mm
Net weight 0.045 kg
Length 20 mm
Cable end type single conductor
Number of cables 1
Bezel size Ø 6.9 mm
Tube length 12 mm
Environment
Ambient air temperature for operation -20-105 °C
Product certifications UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.700 cm
Package 1 Width 0.700 cm
Package 1 Length 2.000 cm
Package 1 Weight 0.300 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 2.000 cm
Package 2 Width 10.500 cm
Package 2 Length 12.000 cm
Package 2 Weight 39.000 g
Unit Type of Package 3 3
Number of Units in Package 3 4000
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 1.747 kg
