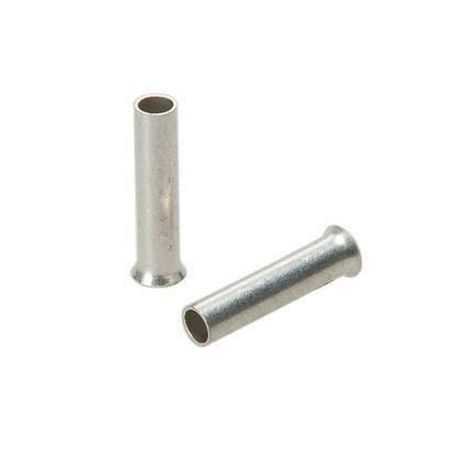

Picture of Cable ends, Linergy TR cable ends, single conductor, 0.5mm², for un-insulated cable, medium size, 10 sets of 100
SKU:

DZ5CE040

Cable ends, Linergy TR cable ends, single conductor, 0.5mm², for un-insulated cable, medium size, 10 sets of 100

Old price: $0.69 INC GST
$0.62 INC GST
Available for Shipping : 12-Aug-2025
Cable ends, Linergy TR cable ends, single conductor, 0.5mm², for un-insulated cable, medium size, 10 sets of 100
  • Linergy cable end insulated without marker tag holder
  • Packing by string of bags and quantity per set is 10 sets of 100
  • Releasing pressure on the sides stops the flow of cable ends
  • Single conductor cable ends available in three different lengths
  • No need to use other marking accessories for cables
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Circularity Profile
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Quantity per set 10 sets of 100
Cable end size medium
Cable cross section 4-4 mm²
Type of packing string of bags
Product or component type cable end
Standards DIN 46228-1
Range of product Linergy
Complementary
CAD overall depth 12 mm
CAD overall width 6 mm
Tube diameter 3.2 mm
Additional information non-insulated
Tube material copper conforming to ISO 1337
Bezel material halogen-free plastic
AWG gauge AWG 12
CAD overall height 6 mm
Net weight 0.3 kg
Length 12 mm
Cable end type single conductor
Number of cables 1
Bezel size Ø 5.4 mm
Tube length 12 mm
Environment
Ambient air temperature for operation -20-105 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.400 cm
Package 1 Width 0.400 cm
Package 1 Length 1.400 cm
Package 1 Weight 0.200 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 1.500 cm
Package 2 Width 4.000 cm
Package 2 Length 6.000 cm
Package 2 Weight 25.000 g
Unit Type of Package 3 3
Number of Units in Package 3 10000
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 2.625 kg
