SKU:

DZ5CE007D

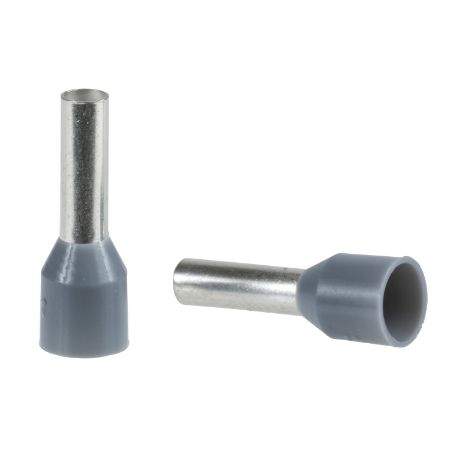

Cable ends, Linergy TR cable ends, single conductor, grey, 0.75mm², for insulated cable, 10 sets of 100

Old price: $0.23 INC GST

Price: $0.21 INC GST

Qty:

Available for Shipping : 12-Aug-2025

Cable ends, Linergy TR cable ends, single conductor, grey, 0.75mm², for insulated cable, 10 sets of 100

Manufacturer: Schneider Electric

Circularity Profile

Catalog

Declaration of conformity

Environmental Disclosure

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Quantity per set	10 sets of 100
Cable end size	medium
Cable cross section	0.75-0.75 mm²
Type of packing	string of bags
Product or component type	cable end
Standards	DIN 46228-4
Range of product	Linergy
Complementary
CAD overall depth	14 mm
CAD overall width	3 mm
Tube diameter	1.5 mm
Additional information	without marker tag holder
Tube material	copper conforming to ISO 1337
Bezel material	halogen-free plastic
Colour	grey
AWG gauge	AWG 20
CAD overall height	3 mm
Net weight	0.1 kg
Length	14 mm
Cable end type	single conductor
Number of cables	1
Bezel size	Ø 3.3 mm
Tube length	8 mm
Environment
Ambient air temperature for operation	-20-105 °C
Product certifications	UL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	0.400 cm
Package 1 Width	0.400 cm
Package 1 Length	1.400 cm
Package 1 Weight	0.100 g
Unit Type of Package 2	2
Number of Units in Package 2	1000
Package 2 Height	2.500 cm
Package 2 Width	11.000 cm
Package 2 Length	18.000 cm
Package 2 Weight	99.000 g
Unit Type of Package 3	3
Number of Units in Package 3	20000
Package 3 Height	15.000 cm
Package 3 Width	15.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	2.186 kg
