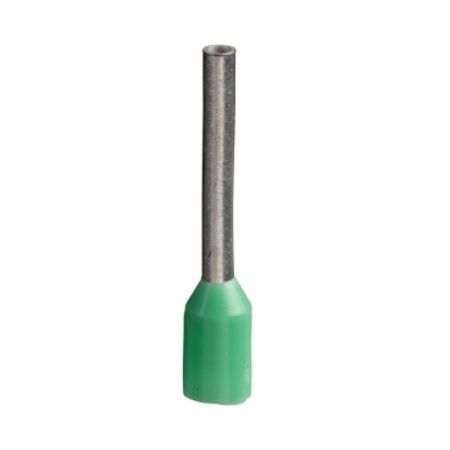

Picture of Cable ends, Linergy TR cable ends, single conductor, green, 0.34mm², medium size, 10 sets of 100
SKU:

DZ5CE003

Cable ends, Linergy TR cable ends, single conductor, green, 0.34mm², medium size, 10 sets of 100

Old price: $0.46 INC GST
$0.41 INC GST
Available for Shipping : 24-Jul-2025
Cable ends, Linergy TR cable ends, single conductor, green, 0.34mm², medium size, 10 sets of 100
  • Linergy cable end insulated without marker tag holder
  • Packing by string of bags and quantity per set is 10 sets of 100
  • Releasing pressure on the sides stops the flow of cable ends
  • Markable, standard, or twin available in three different lengths
  • No need to use other marking accessories for cables
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Circularity Profile
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Quantity per set 10 sets of 100
Cable end size medium
Cable cross section 0.34-0.34 mm²
Type of packing string of bags
Product or component type cable end
Standards NF C 63-023
Range of product Linergy
Complementary
CAD overall depth 12 mm
CAD overall width 2 mm
Tube diameter 1.1 mm
Additional information without marker tag holder
Tube material copper conforming to ISO 1337
Bezel material halogen-free plastic
Colour green
AWG gauge AWG 24
CAD overall height 2 mm
Net weight 0.06 kg
Length 12 mm
Cable end type single conductor
Number of cables 1
Bezel size Ø 2.5 mm
Tube length 8 mm
Environment
Ambient air temperature for operation -20-105 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.400 cm
Package 1 Width 0.400 cm
Package 1 Length 1.400 cm
Package 1 Weight 0.100 g
Unit Type of Package 2 2
Number of Units in Package 2 1000
Package 2 Height 3.500 cm
Package 2 Width 11.000 cm
Package 2 Length 12.000 cm
Package 2 Weight 66.000 g
Unit Type of Package 3 3
Number of Units in Package 3 80000
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 5.875 kg
