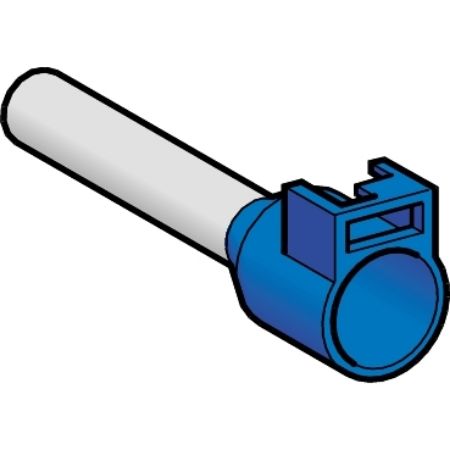

Picture of Cable end, Linergy TR cable ends, single conductor, blue, medium size, 50 mm², clip-in type, 10 sets of 100
SKU:

DZ5CA502

Cable end, Linergy TR cable ends, single conductor, blue, medium size, 50 mm², clip-in type, 10 sets of 100

Old price: $6.44 INC GST
$5.80 INC GST
Available for Shipping : 11-Aug-2025
Cable end, Linergy TR cable ends, single conductor, blue, medium size, 50 mm², clip-in type, 10 sets of 100
  • Linergy cable end insulated markable with integrated marker tag holder
  • Packing by string of bags and quantity per set is 1 sets of 20
  • Releasing pressure on the sides stops the flow of cable ends
  • Markable, standard, or twin available in three different lengths
  • No need to use other marking accessories for cables
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Circularity Profile
User guide
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 20
Cable end size medium
Cable cross section 50-50 mm²
Type of packing bag
Product or component type cable end
Standards NF C 63-023
Range of product Linergy
Complementary
CAD overall depth 36 mm
CAD overall width 16 mm
Tube diameter 11 mm
Additional information for additional marker tag holder
Tube material copper conforming to ISO 1337
Bezel material halogen-free plastic
Colour blue
AWG gauge AWG 1/0
CAD overall height 18 mm
Net weight 0.06 kg
Length 36 mm
Cable end type single conductor
Number of cables 1
Bezel size Ø 16 mm
Tube length 20 mm
Environment
Ambient air temperature for operation -20-105 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.700 cm
Package 1 Width 1.900 cm
Package 1 Length 3.800 cm
Package 1 Weight 3.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 2.000 cm
Package 2 Width 13.000 cm
Package 2 Length 13.000 cm
Package 2 Weight 61.000 g
Unit Type of Package 3 3
Number of Units in Package 3 2000
Package 3 Height 30.000 cm
Package 3 Width 40.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 6.875 kg
