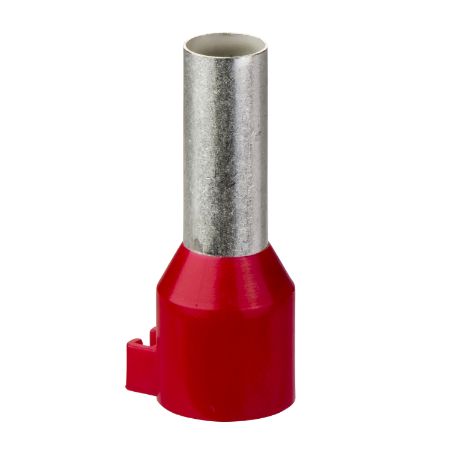

Picture of Cable end, Linergy TR cable ends, single conductor, red, 35 mm², long size, for insulated, clip-in type, 10 sets of 100
SKU:

DZ5CA353D

Cable end, Linergy TR cable ends, single conductor, red, 35 mm², long size, for insulated, clip-in type, 10 sets of 100

Old price: $0.61 INC GST
$0.55 INC GST
Available for Shipping : 12-Aug-2025
Cable end, Linergy TR cable ends, single conductor, red, 35 mm², long size, for insulated, clip-in type, 10 sets of 100
  • Linergy cable end insulated markable with integrated marker tag holder
  • Packing by string of bags and quantity per set is 1 sets of 20
  • Releasing pressure on the sides stops the flow of cable ends
  • Markable, standard, or twin available in three different lengths
  • No need to use other marking accessories for cables
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Circularity Profile
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 20
Cable end size long
Cable cross section 35-35 mm²
Type of packing bag
Product or component type cable end
Standards DIN 46228-4
Range of product Linergy
Complementary
CAD overall depth 39 mm
CAD overall width 14 mm
Tube diameter 8.7 mm
Additional information for additional marker tag holder
Tube material copper conforming to ISO 1337
Bezel material halogen-free plastic
Colour red
AWG gauge AWG 2
CAD overall height 16 mm
Net weight 0.06 kg
Length 39 mm
Cable end type single conductor
Number of cables 1
Bezel size Ø 13.5 mm
Tube length 25 mm
Environment
Ambient air temperature for operation -20-105 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.400 cm
Package 1 Width 0.400 cm
Package 1 Length 1.400 cm
Package 1 Weight 0.100 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 2.500 cm
Package 2 Width 9.000 cm
Package 2 Length 7.000 cm
Package 2 Weight 55.000 g
Unit Type of Package 3 3
Number of Units in Package 3 800
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 2.052 kg
