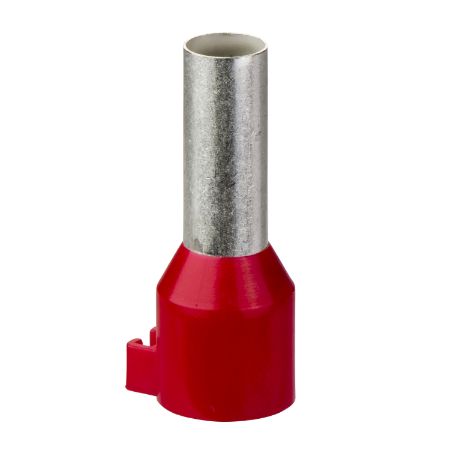

Picture of Cable end, Linergy TR cable ends, single conductor, red, 10mm², for insulated cable, long size, clip-in type, 1 bag
SKU:

DZ5CA103D

Cable end, Linergy TR cable ends, single conductor, red, 10mm², for insulated cable, long size, clip-in type, 1 bag

Old price: $1.61 INC GST
$1.45 INC GST
Available for Shipping : 12-Aug-2025
Cable end, Linergy TR cable ends, single conductor, red, 10mm², for insulated cable, long size, clip-in type, 1 bag
  • Linergy cable end insulated markable with integrated marker tag holder
  • Packing by string of bags and quantity per set is 1 sets of 100
  • Releasing pressure on the sides stops the flow of cable ends
  • Markable, standard, or twin available in three different lengths
  • No need to use other marking accessories for cables
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Circularity Profile
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 100
Cable end size long
Cable cross section 10-10 mm²
Type of packing bag
Product or component type cable end
Standards DIN 46228-4
Range of product Linergy
Complementary
CAD overall depth 28 mm
CAD overall width 8 mm
Tube diameter 4.9 mm
Additional information for additional marker tag holder
Tube material copper conforming to ISO 1337
Bezel material halogen-free plastic
Colour red
AWG gauge AWG 8
CAD overall height 10 mm
Net weight 0.09 kg
Length 28 mm
Cable end type single conductor
Number of cables 1
Bezel size Ø 8.4 mm
Tube length 18 mm
Environment
Ambient air temperature for operation -20-105 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.400 cm
Package 1 Width 0.400 cm
Package 1 Length 1.400 cm
Package 1 Weight 0.100 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 4.000 cm
Package 2 Width 8.000 cm
Package 2 Length 12.000 cm
Package 2 Weight 69.000 g
Unit Type of Package 3 3
Number of Units in Package 3 2000
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 1.575 kg
