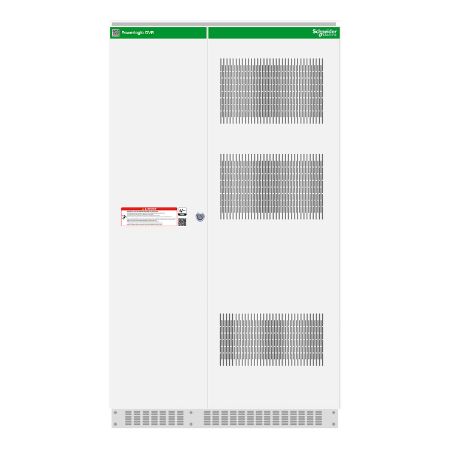

Picture of Voltage regulator DVR, 450 kVA, 208 V, up to 60 % sags reduction, working as secondary
Picture of Voltage regulator DVR, 450 kVA, 208 V, up to 60 % sags reduction, working as secondary
Picture of Voltage regulator DVR, 450 kVA, 208 V, up to 60 % sags reduction, working as secondary
SKU:

DVR45060208S

Voltage regulator DVR, 450 kVA, 208 V, up to 60 % sags reduction, working as secondary

Old price: $315,436.00 INC GST
$252,348.80 INC GST
Available for Shipping : 05-Feb-2026
Product Selector
Voltage regulator DVR, 450 kVA, 208 V, up to 60 % sags reduction, working as secondary
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Catalog
Circularity Profile
User guide
Product Page Link
Product Data Sheet
The PowerLogic DVR series offer to industry a solution to regulate voltage and restore Sags. This equipment is part of the Dynamic Voltage Restorer solution, and do not work stand alone. The secondary unit brings additional capacity to the system power. Protection of sensitive loads in power distribution and transmission systems against voltage distortions. Two of those secondary equipements combined with the main apparatus contribute to the -60 % sags correction at 208 VAC, for a system power of 450 kVA. Enclosure dimensions are 2152 mm in height, 1835 mm in width and 750 mm in depth, and a total weight of 1600 kg. The device passed the following tests: SEMI F47 (US) / IEC 61000-4-34 for sags performances, and received CE, Ctick and EAC certifications. The enclosures is floor standing, equiped with hinged doors locked by a special opening tool. Include a forced ventillation to cool the inverter and the transformer. The design of the equipement allows connection to Source and Loads from the top or bottom, but to DVR input and output only from the bottom. This asset is compatible with EcoStruxure Power Advisor and EcoStruxure Asset Advisor, and could be supported by a service plan. The PowerLogic DVR is designed to reduce voltage sags on power lines that cater to sensitive commercial and industrial equipments.

Products specifications

Attribute name Attribute value
Main
Range PowerLogic
Product or component type voltage module
Complementary
Noise level 75-75 dB
Location of connection bottom
Sag correction response 3 ms
Poles description 3P + N, 3P
Sag correction capability For 3 phases 60-60 % for 30 s, accuracy +/- 1 %
Efficiency non-linear load at at nominal power load factor (97.4 %), linear load at at nominal power load factor ,PF 1 (98.1 %), linear load at at nominal power load factor ,PF 0.8 (97.7 %),  at global efficiency load factor (98 %)
Output voltage accuracy +/- 1 % typical
Enclosure mounting floor-standing
Mean time to repair 2 h
Type of cooling forced cooling
Network frequency 50/60 Hz +/- 10 %
Function available secondary function
Electromagnetic compatibility emission standard for industrial environments conforming to IEC 61000-6-4, immunity for industrial environments conforming to IEC 61000-6-2, voltage dips and interruptions immunity test conforming to IEC 61000-4-34
Ride-through time 40 ms
Material hot-rolled steel, cold-rolled steel
[THDU] total harmonic distorsion 10-10 % (limit), 8-10 % (short time): output voltage regulated at +/- 3 %, 5-8 % (maximum): output voltage regulated at +/- 1 %, 0-5 % (nominal)
Surface finish polyester powder
Network rated voltage 208-208 V AC
Admitted output load inverter overload 150 %, 1 s, inverter overload 110 %, 30 s, up to 100% in unbalance, up to 100% in variation
Continuous regulation range -30-20 %
Overload withstand 30 In, if overload is exceeded equipment integrity is not guaranteed, 200 ms, 30 In, 200 ms, 5 In, 10 s, 2 In, 60 s
Reactive power rating 450 kVA
Accessibility for operation front
Environment
IP degree of protection IP20
Depth 750 mm
Overvoltage category III
Width 1835 mm
Colour light grey (RAL 7035)
Operating altitude <= 1000 m without derating
Relative humidity 0-95 % non-condensing
Ambient air temperature for storage -15-45 °C
Net weight 1600 kg
Pollution degree 2
Ambient air temperature for operation 0-40 °C
Standards ISO 9001, ISO 14001, SEMI F47, IEC 62477-1
Height 2152 mm
Product certifications C-Tick, EAC, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 236.0 cm
Package 1 Width 84.5 cm
Package 1 Length 194.0 cm
Package 1 Weight 1800.0 kg
