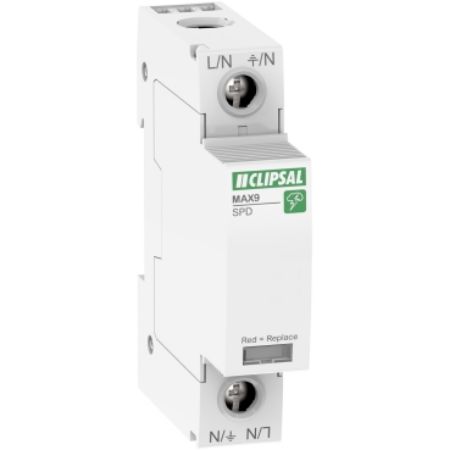

Picture of Clipsal MAX9, Surge Protection Device, SPD, 1P, 40kA
SKU:

MX9SP140

Clipsal MAX9, Surge Protection Device, SPD, 1P, 40kA

$207.50 INC GST
Available for Shipping : 25-Aug-2025
Clipsal MAX9, Surge Protection Device, SPD, 1P, 40kA
Be the first to review this product
Manufacturer: Clipsal
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This MAX9 surge protection device is a modular surge arrester. It is a 1 Pole surge arrester. It has 1 position switch with contacts type 1 NO + 1 NC. This MAX9 surge arrester is compatible with TN-C, TN-S and TT earthing system. The maximum discharge current is 40kA. The nominal discharge current is 15kA. It ensures protection of electronic devices against destruction by lightning. It is recommended in building supplied by overhead lines and protected. It is also recommended in buildings protected by a lightning arrester combined with a type 2 surge arrester. The tunnel type terminal connection allows rigid copper cables from 2.5mm² to 25mm² (top or bottom). The tunnel type terminal connection allows flexible copper cables from 4mm² to 16mm² (top or bottom). It has a RCM quality lable. The Ue rated operational voltage is 240VAC +/-6%. The Up maximum voltage protection level is 1.6kV. The Uc maximum continuous operating voltage is 350VAC. It can be mounted on DIN rail for modular installation. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 85mm x (D) 64mm. The product colour is white (RAL9003). The product weight is 119g. According to IEC 60529 standard, the degree of protection is IP20 and IK03 conforming to IEC 62262 standard. The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C. This product complies with EN 61643-11 and IEC 61643-11 standards.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Poles description 1P
Surge arrester type electrical distribution network
Signal contacts composition 1 NO + 1 NC
Range MAX9
Product or component type surge arrester
Earthing system TT, TN-S, TN-C
Remote signalling with
Range of product MAX9
Complementary
[Ures] residual voltage 1545 V
Tightening torque 3.5-3.5 N.m
Depth 64 mm
Width 18 mm
Colour white (RAL 9003)
Local signalling flag, flag (white/red), white/red flag
[Ue] rated operational voltage 240 V +/- 6 % AC 50/60 Hz
Maximum [Up] voltage protection level <1.6 kV type 2
Response time <= 25 ns
Mounting mode clip-on
Signalling output current 0.25 A
Maximum residual current 0.6 mA 240 V
Connections - terminals tunnel type terminal (top or bottom) 4-16 mm² flexible, tunnel type terminal (top or bottom) 2.5-25 mm² rigid
Wire stripping length 14 mm
Net weight 119 g
Maximum discharge current 40 kA conforming to IEC 61643-11
[Uc] maximum continuous operating voltage 350 V AC
Signalling circuit voltage AC: 250 V 50/60 Hz
Comb busbar and distribution block compatibility tooth
9 mm pitches 2
Nominal discharge current 15 kA conforming to IEC 61643-11
Mounting support DIN rail
[Ut] temporary overvoltage 336 V L/PE 5 s withstand
Surge arrester class type type 2
Height 85 mm
Targeted country Australia
Cable cross section 4-16 mm² flexible, 2.5-25 mm² rigid
Surge arrester technology MOV
Environment
Operating altitude 0...2000 m
Quality labels RCM
Relative humidity 5-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Pollution degree 2
IP degree of protection IP20
Standards EN 61643-11:2012, IEC 61643-11:2011
Ambient air temperature for operation -25-70 °C
IK degree of protection IK03 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.5 cm
Package 1 Width 2.5 cm
Package 1 Length 9.5 cm
Package 1 Weight 132 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8.2 cm
Package 2 Width 27.5 cm
Package 2 Length 9.6 cm
Package 2 Weight 1.584 kg
