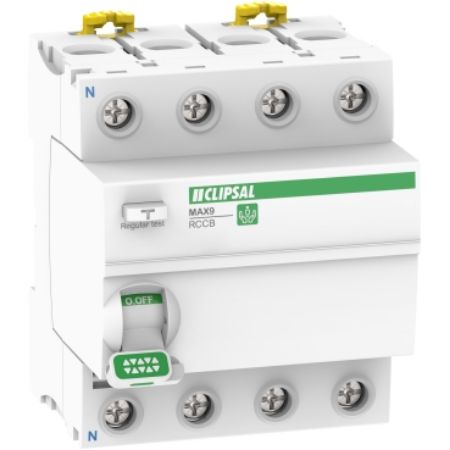

Picture of Clipsal MAX9, Residual Current Circuit Breaker (RCCB), 4P, 40A, 30mA, A Type
SKU:

MX9RC440

Clipsal MAX9, Residual Current Circuit Breaker (RCCB), 4P, 40A, 30mA, A Type

$114.58 INC GST
Available for Shipping : 25-Aug-2025
Clipsal MAX9, Residual Current Circuit Breaker (RCCB), 4P, 40A, 30mA, A Type
Be the first to review this product
Manufacturer: Clipsal
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This MAX9 product is a residual current circuit breaker (RCCB). It is a 4P RCCB with 40A In rated current, a sensitivity of 30mA with A type protection class. The earth-leakage protection time delay is instantaneous. The (Im/IΔm) rated breaking and making short circuit capacity is 500A. The (Inc/IΔc) rated conditional rated short circuit current is 6kA. The electrical endurance going up to 4000 cycles and mechanical endurance is going up to 10000 cycles. This product protects against electrical shock by direct or indirect contact and fire hazards. It is also compulsory for all equipment in bathrooms, outdoors. As an high sensitivity residual current circuit breaker, it is recommended for all power sockets. It has a RCM quality lable. The Ue rated operational voltage is 415VAC. The operating frequency is 50Hz. The Ui rated insulation voltage is 440VAC. It has a Uimp rated impulse withstand voltage of 4kV. It can be mounted on DIN rail for modular installation. The width in 9mm pitches is 8. The dimensions are (W) 72mm x (H) 85mm x (D) 75mm. The product colour is white (RAL9003). The product weight is 370g. According to IEC 60529 standard, the degree of protection is IP20. The pollution degree is 2. The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C. This product is complies with IEC 61008-2-1 and EN/IEC 61008-1 standards.

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 415 V
Poles description 4P
Range MAX9
Product or component type residual current circuit breaker (RCCB)
Earth-leakage sensitivity 30 mA
Network type AC
[In] rated current 40 A conforming to AS/NZS 61008.1
Network frequency 50 Hz
Complementary
Rated conditional short-circuit current MAX9 MCB: Inc 6 kA 40 A
Tightening torque 3.5-3.5 N.m top or bottom
Depth 75 mm
Width 72 mm
Colour white (RAL 9003)
[Uimp] rated impulse withstand voltage 4 kV
Local signalling ON/OFF indication
Mechanical durability 10000 cycles
Grid distance 35 mm
Rated breaking and making capacity Im 500 A at 415 V AC 50 Hz conforming to AS/NZS 61008.1
Quality labels RCM
Electrical durability 4000 cycles AC 50 Hz
Mounting mode clip-on
[Ui] rated insulation voltage 440 V AC 50 Hz conforming to AS/NZS 61008.1
Earth-leakage protection time delay instantaneous
Control type toggle
Wire stripping length 14 mm for top or bottom connection
Net weight 370 g
Surge current 250 A
Connections - terminals tunnel type terminals (top or bottom)
Earth-leakage protection class type A
9 mm pitches 8
Temperature derating table 70 °C ( 25 A ) , 65 °C ( 27.5 A ) , 60 °C ( 30 A ) , 55 °C ( 32.5 A ) , 50 °C ( 35 A ) , 45 °C ( 37.5 A ) , 40 °C ( 40 A )
Mounting support DIN rail
Standards EN/IEC 61008-1, IEC 61008-2-1
Height 85 mm
Environment
Overvoltage category III
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Pollution degree 2
IP degree of protection IP20
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8 cm
Package 1 Width 9 cm
Package 1 Length 8 cm
Package 1 Weight 366 g
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 9 cm
Package 2 Width 25.4 cm
Package 2 Length 10.6 cm
Package 2 Weight 1.194 kg
