SKU:

MX9R3532

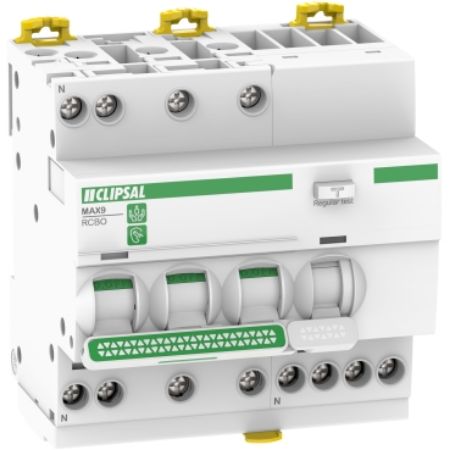

Clipsal MAX9, Residual Current Breaker with Overcurrent Protection (RCBO), 3PN, 32A, 30mA, C Curve, 6000A, A Type, 5 MOD

$272.58 INC GST

Qty:

Available for Shipping : 23-Sep-2025

Clipsal MAX9, Residual Current Breaker with Overcurrent Protection (RCBO), 3PN, 32A, 30mA, C Curve, 6000A, A Type, 5 MOD

Be the first to review this product

Manufacturer: Clipsal

Environmental Disclosure

Instruction sheet

Product Page Link

Product Data Sheet

This MAX9 product is a residual current breaker with overcurrent protection (RCBO). It is a 3P+N circuit breaker with 3 protected poles, 32A In rated current at 30°C and C tripping curve. The operating frequency is 50Hz. The earth leakage protection class is type A with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 6000A at 415VAC. It has an electrical endurance going up to 10000 cycles and mechanical endurance going up to 20000 cycles. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. It brings safety, reliable solution for commercial and industrial applications with high breaking capacity. It has a RCM quality lable. The Ue rated operational voltage is 415VAC. The Ui rated insulation voltage is 440VAC. It has a Uimp rated impulse withstand voltage of 4kV. It can be mounted on DIN rail for modular installation. The width in 9mm pitches is 10. The dimensions are (W) 90mm x (H) 95mm x (D) 75mm. The product color is white (RAL9003). The product weight is 500g. According to IEC 60529 standard, the degree of protection is IP20. The pollution degree is 2. The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C. This product is complies with IEC 61009-2-1 and EN/IEC 61009-1 standards.

Products specifications

Attribute name	Attribute value
Main
[Ue] rated operational voltage	415 V AC 50 Hz
Poles description	3P + N
Range	MAX9
Product or component type	residual current breaker with overcurrent protection (RCBO)
Earth-leakage sensitivity	30 mA
Earth-leakage protection class	type A
Network type	AC
Number of protected poles	3
Curve code	C
[In] rated current	32 A at 30 °C conforming to AS/NZS 61009.1
Network frequency	50 Hz
Complementary
Depth	75 mm
Width	90 mm
[Uimp] rated impulse withstand voltage	4 kV
Grid distance	45 mm
Breaking capacity	6000 A Icn at 415 V AC 50 Hz
[Ui] rated insulation voltage	440 V AC 50 Hz
Earth-leakage protection time delay	instantaneous
Net weight	500 g
Connections - terminals	tunnel type terminal - 1...10 mm² - flexible, tunnel type terminal - 1...16 mm² - rigid
Comb busbar and distribution block compatibility	YES
Limitation class	3
9 mm pitches	10
Temperature derating table	70 °C ( 26.8 A ) , 65 °C ( 27.5 A ) , 60 °C ( 28.2 A ) , 55 °C ( 28.9 A ) , 50 °C ( 29.5 A ) , 45 °C ( 30.2 A ) , 40 °C ( 30.8 A ) , 35 °C ( 31.4 A ) , 30 °C ( 32 A ) , 25 °C ( 32.6 A ) , 20 °C ( 33.2 A ) , 15 °C ( 33.7 A ) , 10 °C ( 34.3 A ) , 5 °C ( 34.8 A ) , 0 °C ( 35.4 A ) , -5 °C ( 35.9 A ) , -10 °C ( 36.4 A ) , -15 °C ( 37 A ) , -20 °C ( 37.5 A ) , -25 °C ( 38 A )
Height	95 mm
Environment
Quality labels	RCM
Overvoltage category	III
Pollution degree	2
IP degree of protection	IP20
Standards	AS/NZS 61009.1, EN/IEC 61009-1, IEC 61009-2-1
Ambient air temperature for operation	-25-70 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	7.8 cm
Package 1 Width	9.1 cm
Package 1 Length	9.0 cm
Package 1 Weight	498.0 g
Unit Type of Package 2	2
Number of Units in Package 2	16
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	8.409 kg
