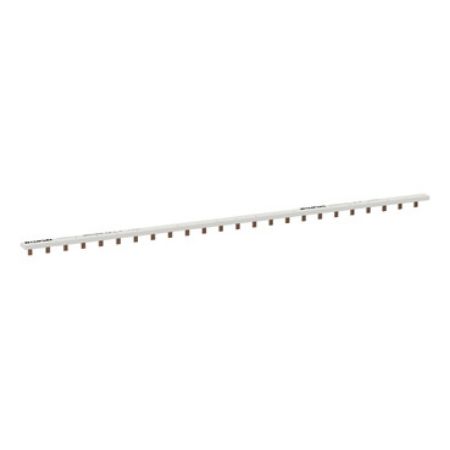

Picture of Clipsal MAX9, Pin Type Comb Busbar, 1P, 100 A, 24 Modules
SKU:

MX9B124P

Clipsal MAX9, Pin Type Comb Busbar, 1P, 100 A, 24 Modules

$105.07 INC GST
Available for Shipping : 09-Sep-2025
Clipsal MAX9, Pin Type Comb Busbar, 1P, 100 A, 24 Modules
Be the first to review this product
Manufacturer: Clipsal
Product Page Link
Product Data Sheet
MAX9 product is a Pin comb busbar. The rated current is 100A. It is 1P and 24 modules. Comb busbar mounting mode is horizontal and cuttable. The provided equipements are end-pieces and tooth covers. It is dedicated to residential market. The Ue rated operational voltage is 230VAC or 415VAC. The Ui rated insulation voltage is 500V. The dimensions are (W) 423mm x (H) 17mm x (D) 15mm.colour is white electric (RAL9003). The comb busbar colour is white electric (RAL9003)

Products specifications

Attribute name Attribute value
Main
Range MAX9
Product or component type comb busbar
Total number of 18 mm modules 24
Product brand Clipsal
Complementary
Poles configuration for 1 way 24 x 1P
Depth 15 mm
Mounting location top
Market segment residential
Width 423 mm
Colour grey (RAL 9003)
[Uimp] rated impulse withstand voltage 6 kV
Connection pitch 18 mm
[Ue] rated operational voltage 230 V AC
Insulation insulated
Mounting mode horizontal
[Ie] rated operational current 100 A
[Ui] rated insulation voltage 500 V
Device presentation cuttable
Number of ways 24 ways L
Provided equipment tooth covers, 2 end-pieces
Height 17 mm
Environment
Fire resistance 960 °C
Standards AS/NZS 3000, AS/NZS 61439-3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.4 cm
Package 1 Width 2.1 cm
Package 1 Length 42.7 cm
Package 1 Weight 106.0 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 9.5 cm
Package 2 Width 10.5 cm
Package 2 Length 103.0 cm
Package 2 Weight 5.3 kg
