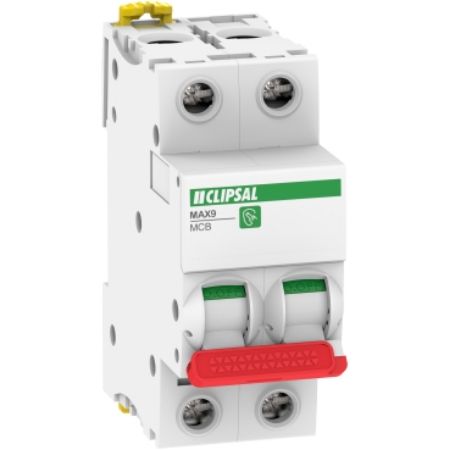

Picture of Clipsal MAX9, Miniature Circuit-Breaker (MCB), 2P, 63A, C Curve, 6000A, 415V, Incomer, RED Toggle
SKU:

MX9MC263R

Clipsal MAX9, Miniature Circuit-Breaker (MCB), 2P, 63A, C Curve, 6000A, 415V, Incomer, RED Toggle

$64.02 INC GST
Available for Shipping : 25-Aug-2025
Clipsal MAX9, Miniature Circuit-Breaker (MCB), 2P, 63A, C Curve, 6000A, 415V, Incomer, RED Toggle
Be the first to review this product
Manufacturer: Clipsal
Product Page Link
Product Data Sheet
This MAX9 product is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected pole and 63A In rated current and C tripping curve. The Icn rated short circuit breaking capacity is up to 6000A at 415VAC conforming to AS/NZS 60898 standard. This product is compliant with AS/NZS 60898 standard. This miniature circuit breaker protects circuit against short circuit and overload current. The MAX9 is targeted to residential for individual and collective buildings. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 415VAC. The Ui rated insulation voltage is 500VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 6 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 54mm x (H) 85mm x (D) 75mm. According to AS/NZS 60898 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -25-70 °C. The storage temperature is -40-85 °C.

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 415 V AC 50/60 Hz
Device application incomer
Colour white (RAL 9003)
Poles description 2P
Range MAX9
Product or component type miniature circuit-breaker
Magnetic tripping limit 5...10 x In
Network type AC
Number of protected poles 2
Curve code C
[In] rated current 63.0 A at 30 °C, 63 A at 30 °C
Network frequency 50/60 Hz
Complementary
Heat dissipation 5.6-5.6 W
Tightening torque 3.5-3.5 N.m
Depth 75 mm
Provision for padlocking padlockable
Width 36 mm
[Uimp] rated impulse withstand voltage 4 kV
Local signalling ON/OFF indication
Mechanical durability 20000 cycles
Grid distance 65 mm
Suitability for isolation yes
Electrical durability 10000 cycles 240 V
Breaking capacity 6000 A Icn at 415 V AC 50/60 Hz conforming to AS/NZS 60898
[Ui] rated insulation voltage 500 V
Control type toggle
Wire stripping length 14 mm for top or bottom connection
Connections - terminals tunnel type terminals (top or bottom) 1-35 mm² rigid, tunnel type terminals (top or bottom) 1-25 mm² flexible
Net weight 375 g
Limitation class 3
9 mm pitches 4
Embedding depth 44 mm
Contact position indicator yes
Height 85 mm
[Ics] rated service breaking capacity 6000 A 100 % - 415 V AC 50/60 Hz
Environment
Operating altitude 0...2000 m
Overvoltage category III
Quality labels RCM
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Pollution degree 2
IP degree of protection IP20
Temperature derating table 70 °C ( 51.1 A ) , 65 °C ( 52.8 A ) , 60 °C ( 54.3 A ) , 55 °C ( 55.9 A ) , 50 °C ( 57.4 A ) , 45 °C ( 58.8 A ) , 40 °C ( 60.3 A ) , 35 °C ( 61.6 A ) , 30 °C ( 63 A ) , 25 °C ( 64.3 A ) , 20 °C ( 65.5 A ) , 15 °C ( 66.9 A ) , 10 °C ( 68.2 A ) , 5 °C ( 69.4 A ) , 0 °C ( 70.6 A ) , -5 °C ( 71.8 A ) , -10 °C ( 73 A ) , -15 °C ( 74.1 A ) , -20 °C ( 75.3 A ) , -25 °C ( 76.4 A )
Tropicalisation severity B conforming to IEC 60068-2-30
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.5 cm
Package 1 Width 8.5 cm
Package 1 Length 3.5 cm
Package 1 Weight 243.0 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 8 cm
Package 2 Width 22 cm
Package 2 Length 9.85 cm
Package 2 Weight 1.542 kg
