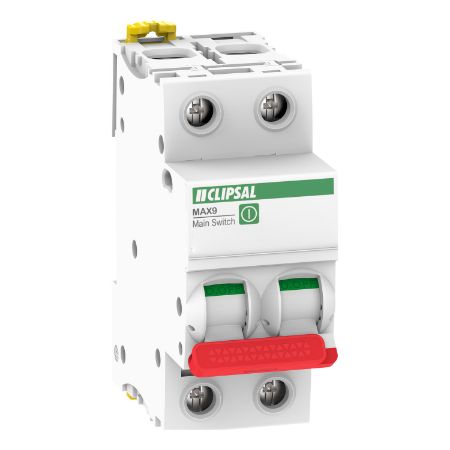

Clipsal MAX9, Isolator Switch, 2P, 100A, 415V

$82.37 INC GST
Available for Shipping : 24-Aug-2025
Clipsal MAX9, Isolator Switch, 2P, 100A, 415V
Be the first to review this product
Manufacturer: Clipsal
Product Page Link
Product Data Sheet
This MAX9 product is a switch disconnector. This switch disconnector is used for control (opening and closing of circuits under load). This product is also used for disconnection of on-load electrical circuits already protected against overload and short-circuits. It has a position contact indication suitable for industrial isolation according to IEC 60947-3 standard. It is a 2P switch disconnector with 100A In rated current. The MAX9 is targeted to residential for individual and collective buildings. The Ue rated operational current 415VAC. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 415VAC. The Ui rated insulation voltage is 500VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 85mm x (D) 75mm. According to IEC 60947-3 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -25-70 °C. The storage temperature is -40-70 °C.

Products specifications

Attribute name Attribute value
Main
Device application switch
Poles description 2P
Suitability for isolation yes
Range MAX9
Utilisation category AC-22A
Product or component type switch disconnector
Complementary
[Ue] rated operational voltage 415 V AC 50/60 Hz
Maximum power AC-22A: 9.4 W at 415 V AC 50/60 Hz
[Icw] rated short-time withstand current 1500 A during 1 s conforming to IEC 60947-3 at 415 V
Depth 75 mm
Market segment residential
Width 36 mm
[Uimp] rated impulse withstand voltage 6 kV
Connection pitch 18 mm
Local signalling ON/OFF indication
Mechanical durability 20000 cycles
[Ie] rated operational current AC-22A: 100 A at 415 V AC 50/60 Hz
Tightening torque 3.5 N.m
Colour white
Electrical durability AC-22A: 10000 cycles 415 V AC 50/60 Hz
[Icm] rated short-circuit making capacity 5 kA 415 V AC at 50/60 Hz
Mounting mode clip-on
[Ui] rated insulation voltage 500 V AC 50/60 Hz
Wire stripping length 14 mm
Control type toggle
Net weight 161 g
Connections - terminals tunnel type terminals (top or bottom) - 6...35 mm² - flexible, tunnel type terminals (top or bottom) - 6...50 mm² - rigid
Comb busbar and distribution block compatibility top or bottom: YES
9 mm pitches 4
Mounting support DIN rail
Contact position indicator yes
[Ith] conventional free air thermal current 100 A
Height 85 mm
Network frequency 50/60 Hz
Environment
Overvoltage category IV
Quality labels RCM
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Pollution degree 3
IP degree of protection IP20
Tropicalisation severity B conforming to IEC 60068-2-30
Standards IEC 60947-3
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.5 cm
Package 1 Width 7.5 cm
Package 1 Length 3.6 cm
Package 1 Weight 160 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 9.6 cm
Package 2 Width 8.2 cm
Package 2 Length 22 cm
Package 2 Weight 960 g
