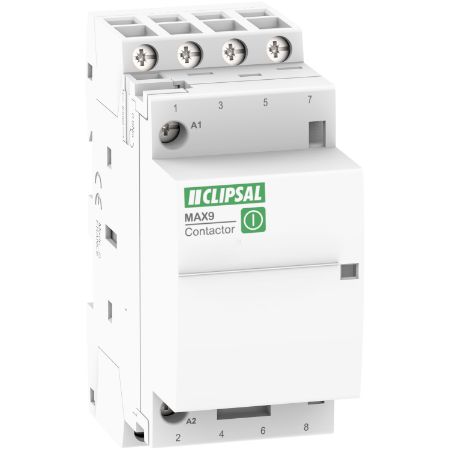

Picture of Clipsal MAX9, Contactor, 4 NO, 25A, Ue=415VAC, Uc=240VAC, 2 Modules
SKU:

MX9C122540

Clipsal MAX9, Contactor, 4 NO, 25A, Ue=415VAC, Uc=240VAC, 2 Modules

$256.87 INC GST
Available for Shipping : 24-Aug-2025
Clipsal MAX9, Contactor, 4 NO, 25A, Ue=415VAC, Uc=240VAC, 2 Modules
Be the first to review this product
Manufacturer: Clipsal
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This MAX9 product is a modular contactor. It is a 4P modular contactor with 4 normally open contacts. The rated current is 25A for AC-7a. The Ue rated operational voltage is 240VAC. The Uc control voltage is 240VAC. This device could be used for control circuits. This device could be used for remote switching small motors (fans, mixers) or HVAC system applications. This product is compliant with IEC/EN 61095 standard. The MAX9 is targeted to residential for individual and collective buildings. It has an electrical endurance going up to 100000 cycles and a mechanical endurance going up to 1000000 cycles. The operating frequency is 50Hz. It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 63mm. According to EN 61095 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5-70 °C. The storage temperature is -40-70 °C.

Products specifications

Attribute name Attribute value
Main
Device application control circuit
[Ie] rated operational current 25 A AC-7A
Control type remote control
Range MAX9
Poles description 4P
Pole contact composition 4 NO
Utilisation category AC-7A
Product or component type contactor
Network type AC
[Uc] control circuit voltage 240 V AC 50 Hz
Complementary
Product compatibility no auxiliary
Tightening torque 0.8-0.8 N.m
Colour white (RAL 9003)
[Uimp] rated impulse withstand voltage 2.5 kV
Mechanical durability 1000000 cycles
Electrical durability 100000 cycles 240 V 63 A AC 50 Hz
Mounting mode clip-on
Wire stripping length 10 mm
Comb busbar and distribution block compatibility NO
Hold-in power consumption in VA 4.6-4.6 VA
Switching frequency 100 switching operations/day
Height 85 mm
Connections - terminals control: tunnel type terminal2 cable(s) 0.5-2.5 mm² rigid, control: tunnel type terminal1 cable(s) 0.5-6 mm² rigid, control: tunnel type terminal2 cable(s) 0.5-2.5 mm² flexible, control: tunnel type terminal1 cable(s) 0.5-4 mm² flexible, power: tunnel type terminal2 cable(s) 1.5-2.5 mm² rigid, power: tunnel type terminal1 cable(s) 1.5-6 mm² rigid, power: tunnel type terminal2 cable(s) 1.5-2.5 mm² flexible, power: tunnel type terminal1 cable(s) 1.5-4 mm² flexible
[Ue] rated operational voltage 415 V AC 50 Hz
Maximum power 1.6 W at 415 V AC 50 Hz
Depth 63 mm
Market segment residential
Width 36 mm
Inrush power in VA 34 VA
[Ui] rated insulation voltage 500 V AC 50 Hz conforming to EN 61095
Net weight 240 g
9 mm pitches 4
Temperature derating table 60 °C ( 20 A ) , 50 °C ( 23.8 A ) , 40 °C ( 25 A )
Mounting support 35 mm symmetrical DIN rail
Network frequency 50 Hz
Environment
Heat dissipation 5.6-5.6 W at 50 Hz
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-70 °C
Pollution degree 2
Noise level 30 dB
IP degree of protection IP20 (modular enclosure) conforming to IEC 60529
Tropicalisation severity B
Ambient air temperature for operation -5-70 °C
Operating altitude 2000 m
Overvoltage category III
Quality labels RCM
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.8 cm
Package 1 Width 11.1 cm
Package 1 Length 12.1 cm
Package 1 Weight 269.8 g
Unit Type of Package 2 2
Number of Units in Package 2 42
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 11.832 kg
