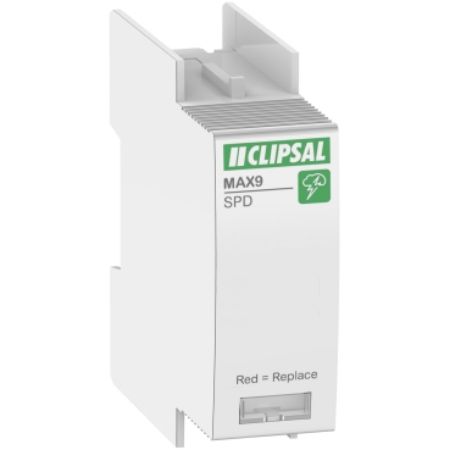

Picture of Clipsal MAX9, Cartridge Surge Protection Device, SPD, 1P, 40kA
SKU:

MX9SP40C

Clipsal MAX9, Cartridge Surge Protection Device, SPD, 1P, 40kA

$120.78 INC GST
Available for Shipping : 24-Aug-2025
Clipsal MAX9, Cartridge Surge Protection Device, SPD, 1P, 40kA
Be the first to review this product
Manufacturer: Clipsal
Instruction sheet
Product Page Link
Product Data Sheet
This MAX9 cartridge surge protection device is a modular surge arrester. It is a 1 Pole surge arrester. This MAX9 surge arrester is compatible with TN-C, TN-S and TT earthing system. The maximum discharge current is 40kA. The nominal discharge current is 15kA. It ensures protection of electronic devices against destruction by lightning. It is recommended in building supplied by overhead lines and protected. It is also recommended in buildings protected by a lightning arrester combined with a type 2 surge arrester. It has a RCM quality lable. The Ue rated operational voltage is 240VAC +/-6%. The Up maximum voltage protection level is 1.6kV. The Uc maximum continuous operating voltage is 350VAC. It can be mounted on DIN rail for modular installation. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 85mm x (D) 64mm. The product colour is white (RAL9003). The product weight is 0.051kg. According to IEC 60529 standard, the degree of protection is IP20 and IK03 conforming to IEC 62262 standard. The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C. This product complies with EN 61643-11 and IEC 61643-11 standards.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Poles description 1P
Surge arrester type electrical distribution network
Range MAX9
Product or component type surge arrester
Complementary
[Ures] residual voltage 1545 V
Depth 64 mm
Width 18 mm
Colour white (RAL 9003)
[Ue] rated operational voltage 240 V +/- 6 % AC 50/60 Hz
Maximum [Up] voltage protection level <1.6 kV type 2
Response time <= 25 ns
Local signalling white/red flag
Pollution degree 2
Mounting mode clip-on
Net weight 51 g
[Uc] maximum continuous operating voltage 350 V AC
Maximum discharge current 40 kA conforming to IEC 61643-11
Earthing system TT, TN-S, TN-C
9 mm pitches 2
Nominal discharge current 15 kA conforming to IEC 61643-11
Mounting support DIN rail
Surge arrester class type type 2
Height 85 mm
Targeted country Australia
Surge arrester technology MOV
Environment
Operating altitude 0...2000 m
Quality labels RCM
Relative humidity 5-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
IP degree of protection IP20 DIN rail
Standards EN 61643-11:2012, IEC 61643-11:2011
Ambient air temperature for operation -25-70 °C
IK degree of protection IK03 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6 cm
Package 1 Width 6 cm
Package 1 Length 1.8 cm
Package 1 Weight 70 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8.2 cm
Package 2 Width 27.5 cm
Package 2 Length 9.6 cm
Package 2 Weight 840 g
