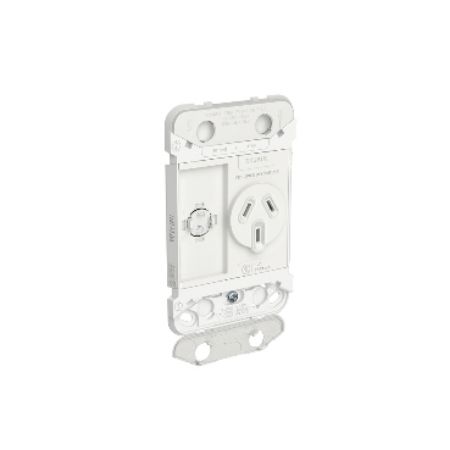

Picture of Clipsal Iconic, Single Switch Power Point Grid, Vertical Mount, 250V, 10A
SKU:

3015VG

Clipsal Iconic, Single Switch Power Point Grid, Vertical Mount, 250V, 10A

$29.57 INC GST
Available for Shipping : 28-Jul-2025
Clipsal Iconic, Single Switch Power Point Grid, Vertical Mount, 250V, 10A
Be the first to review this product
Manufacturer: Clipsal
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
The 250 V, 10 A Clipsal Iconic Single Switch Power Point Grid is engineered with safety in mind and with a flush vertical mounting.

Products specifications

Attribute name Attribute value
Main
Outlet poles configuration 2P + E with shutter
Device presentation mechanism with fixing frame
Outlet standard Australian
Range Clipsal Iconic
Product or component type switched socket
Complementary
Number of power socket outlets 1
Quantity per set set of 10
Sale per indivisible quantity 1
Wire stripping length 16 mm
Height 115 mm
Connections - terminals 3 screw terminals
Electrical durability 12000 cycles
Number of rocker 1
Material POM (polyoxymethylene): shutter, PP (polypropylene): rocker, PC (polycarbonate): fixing frame
Net weight 0.082 kg
Type of packing polybag
Clamping connection capacity 1 x 2.5...4 x 2.5 mm² for flexible cable(s), 1 x 2.5...4 x 2.5 mm² for stranded cable(s), 1 x 2.5...4 x 2.5 mm² for rigid cable(s)
Range compatibility Clipsal Iconic cover frame
Device mounting flush
Embedding depth 24 mm
Ground lug position straight 180° position
Surface finish matt
Screwdriver shape Philips No 2, square drive no 1 (SQ1)
Depth 31 mm
Width 71 mm
Installation direction vertical
Outlet standard description with earthing contact
Outlet standard deviation Australian/New Zealand
Rated current 10 A at 250 V AC 50 Hz
Fixing mode by screw
Environment
Relative humidity 10-95 %
Product certifications RCM
Ambient air temperature for operation 0-45 °C
Standards AS/NZS 3112
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.2 cm
Package 1 Width 15.0 cm
Package 1 Length 7.2 cm
Package 1 Weight 86.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 32.8 cm
Package 2 Width 10.6 cm
Package 2 Length 14.6 cm
Package 2 Weight 820 g
