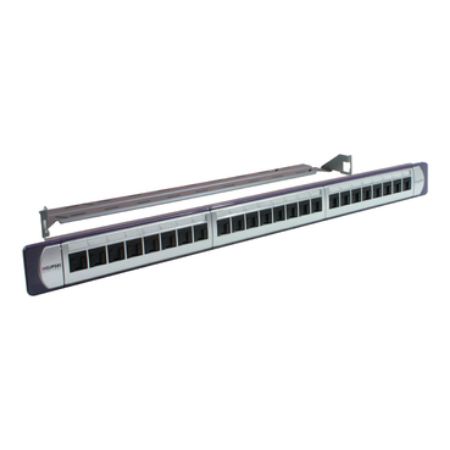

Picture of Clipsal Actassi, P/Panel 24 Port, CAT6 UTP Shutter with Jacks
SKU:

RJ6U24PPCSH

Clipsal Actassi, P/Panel 24 Port, CAT6 UTP Shutter with Jacks

$544.50 INC GST
Available for Shipping : 18-Aug-2025
Clipsal Actassi, P/Panel 24 Port, CAT6 UTP Shutter with Jacks
Be the first to review this product
Manufacturer: Clipsal
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device application quick termination tool, punch down tool
Colour code TIA-568A/B
Provided equipment with RJ45 connectors 24 , ports identification at the rear 24 , removable cable tray 1 , label holder 3 inside the rack, side cover 2 6 U/UTP inside the enclosure
Colour grey (RAL 7040)
Quantity per set set of 1
Device presentation loaded
Range Actassi
Product or component type patch panel
Product brand Clipsal
Complementary
Dielectric strength 1000 V
Contact resistance 20 mOhm
Cable outer diameter 0.9-1.4 mm
Depth 124 mm
Width 482 mm
Communication network category 6
Minimum number of matings 750 cycles
Number of pairs 4 pairs
Connections - terminals IDC
AWG gauge AWG 24...AWG 23
Number of rack unit 1U
Installation direction 90°
Communication port support ETHERNET
Cable shielding type U/UTP
Net weight 1 kg
Material ABS + PC + metal TIA-568A/B 1.5 mm
Connector type 24 RJ45 Cat. 6 U/UTP
Targeted region Asia Pacific.
Insulation resistance >= 500 MOhm
Mounting support 19" rack
Height 44 mm
Type of footprint S-110 keystone
[In] rated current 1.5 A at 25 °C
Environment
Ambient air temperature for storage -20-70 °C
Relative humidity 0-93 %
Product certifications RCM, UL listed conforming to UL 94 V0
Standards UL 1863, AS/NZS 3080:2003, IEC 60603-7-2, ANSI/TIA-568-C.2, ISO/IEC 11801:2011 Ed.2.2
Ambient air temperature for operation -10-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 51 cm
Package 1 Width 13 cm
Package 1 Length 50 cm
Package 1 Weight 1.09 kg
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 11400 g
Unit Type of Package 3 3
Number of Units in Package 3 80
Package 3 Height 105 cm
Package 3 Width 80 cm
Package 3 Length 120 cm
Package 3 Weight 101.2 kg
