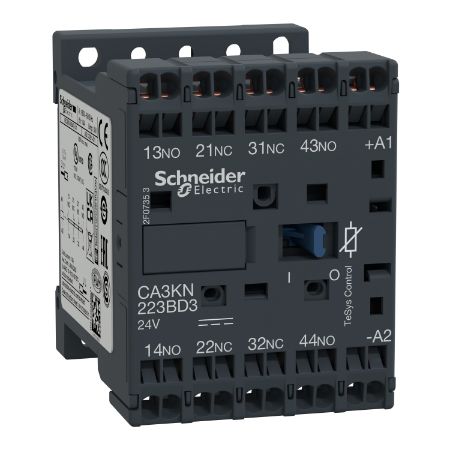

Picture of TeSys, Control relay, TeSys K, 4P(2NO+2NC), 690V, 24V DC coil,spring terminal
SKU:

CA3KN223BD3

TeSys, Control relay, TeSys K, 4P(2NO+2NC), 690V, 24V DC coil,spring terminal

Old price: $222.75 INC GST
$140.33 INC GST
Available for Shipping : 13-Aug-2025
TeSys, Control relay, TeSys K, 4P(2NO+2NC), 690V, 24V DC coil,spring terminal
  • TeSys Control Relays provide a cost-effective solution to a simple application
  • Same design as TeSys D, K and SK contactors
  • Different ways for connection. (such as screw clamp terminal, spring terminal, welded on PCB)
  • Compatible for all the voltages on the market
  • Multiple international certifications
  • Control relays for AC or DC control circuits (AC15, DC13)
  • Easy to use interface for electronic devices (example: PLCs)
  • Various Relay Coil Voltages: A.C, D.C. or low consumption
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Instruction sheet
Declaration of conformity
Catalog
Circularity Profile
Product Page Link
Product Data Sheet
TeSys K control relay, 4 contacts (2NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name CA3K
Range TeSys
Control circuit type DC standard
Range of product TeSys K control relay
Utilisation category AC-15, DC-13
Pole contact composition 2 NO + 2 NC
Product name TeSys CAK
Product or component type control relay
Contactor application control circuit
[Uc] control circuit voltage 24 V DC
[Ue] rated operational voltage <= 690 V <= 400 Hz
Complementary
Heat dissipation 3-3 W
Compatibility code CA3K
Mechanical durability 20 Mcycles
Minimum switching voltage 17 V
Connections - terminals spring terminals 1 cable(s) 0.75-1.5 mm²flexible without cable end, spring terminals 1 cable(s) 0.75-1.5 mm²solid
Associated fuse rating 10 A gG conforming to VDE 0660, 10 A gG conforming to IEC 60947
Irms rated making capacity 110 A conforming to IEC 60947
[Ith] conventional free air thermal current 10 A (at 50 °C)
Control circuit voltage limits drop-out: 0.1...0.75 Uc (at <50 °C), operational: 0.8...1.15 Uc (at <50 °C)
Height 58 mm
[Ui] rated insulation voltage 600 V conforming to CSA C22.2 No 14, 690 V conforming to BS 5424, 750 V conforming to VDE 0110 group C, 690 V conforming to IEC 60947
Depth 57 mm
Width 45 mm
Operating time 25...35 ms coil energisation and NC opening, 15 ms coil de-energisation and NC closing, 30...40 ms coil energisation and NO closing, 10 ms coil de-energisation and NO opening
Inrush power in W 3-3 W (at 20 °C)
Maximum operating rate 10000 cyc/h
Coil technology built-in bidirectional peak limiting diode suppressor
Net weight 0.225 kg
Insulation resistance > 10 MOhm
Hold-in power consumption in W 3-3 W at 20 °C
Immunity to microbreaks 2 ms
Mounting support plate, rail
Non overlap distance 0.5 mm
Minimum switching current 5 mA
Environment
Protective treatment TC conforming to IEC 60068
Ambient air temperature for storage -50-80 °C
Standards JIS C8201-4-1, CSA C22.2 No 60947-4-1, UL 60947-4-1, GB/T 14048.4, EN/IEC 60947-4-1
Ambient air temperature for operation -25-50 °C
Mechanical robustness shocks contactor closed: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor open: 10 Gn for 11 ms conforming to IEC 60068-2-27, vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations contactor open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Operating altitude 2000 m without derating
Flame retardance requirement 2 conforming to NF F 16-102, requirement 2 conforming to NF F 16-101, V1 conforming to UL 94
Product certifications UKCA, CE, EAC, CSA, UL, CCC, CB Scheme
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.8 cm
Package 1 Width 6.2 cm
Package 1 Length 6.5 cm
Package 1 Weight 226.0 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.441 kg
