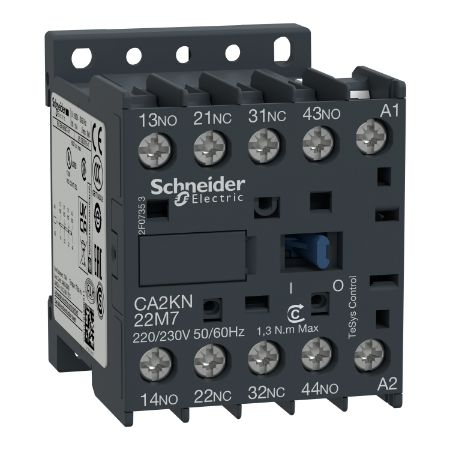

Picture of TeSys; TeSys K, control relay, 2 NO + 2 NC , <= 690 V , 380...400 V AC coil
SKU:

CA2KN22Q7

TeSys; TeSys K, control relay, 2 NO + 2 NC , <= 690 V , 380...400 V AC coil

Old price: $148.28 INC GST
$93.42 INC GST
Available for Shipping : 24-Aug-2025
TeSys; TeSys K, control relay, 2 NO + 2 NC , <= 690 V , 380...400 V AC coil
  • Designed to meet needs of various applications
  • Optimized size to save customer cabinet space
  • Wide range of accessaries to satisfy different customer usage
  • Easier to install and operate with multi-standard screws
  • Environmental performance of the product
  • Control relays for AC or DC control circuits (AC15, DC13)
  • Easy to use interface for electronic devices (example: PLCs)
  • Various Relay Coil Voltages: A.C, D.C. or low consumption
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Declaration of conformity
CAD
Instruction sheet
Catalog
Circularity Profile
Product Page Link
Product Data Sheet
TeSys K control relay, 4 contacts (2NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides 380/400V 50/60Hz AC coil as standard coil for control circuit, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name CA2K
Range TeSys
Control circuit type AC at 50/60 Hz
Range of product TeSys K control relay
Utilisation category AC-15, DC-13
Pole contact composition 2 NO + 2 NC
Product name TeSys CAK
Product or component type control relay
Contactor application control circuit
[Uc] control circuit voltage 380...400 V AC 50/60 Hz
[Ue] rated operational voltage <= 690 V <= 400 Hz
Complementary
Heat dissipation 1.3-1.3 W
Compatibility code CA2K
Mechanical durability 10 Mcycles
Tightening torque 1.3 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, 1.3 N.m - on screw clamp terminals - with screwdriver Philips No 26 mm, 1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Minimum switching voltage 17 V
Connections - terminals screw clamp terminals 2 cable(s) 0.34-1.5 mm²flexible without cable end, screw clamp terminals 1 cable(s) 0.34-1.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 0.75-4 mm²flexible with cable end, screw clamp terminals 2 cable(s) 1.5-4 mm²solid, screw clamp terminals 1 cable(s) 1.5-4 mm²solid
Associated fuse rating 10 A gG conforming to VDE 0660, 10 A gG conforming to IEC 60947
Irms rated making capacity 110 A conforming to IEC 60947
[Ith] conventional free air thermal current 10 A (at 50 °C)
Control circuit voltage limits operational: 0.8...1.15 Uc (at <50 °C), drop-out: 0.2...0.75 Uc (at <50 °C)
Height 58 mm
[Ui] rated insulation voltage 600 V conforming to CSA C22.2 No 14, 690 V conforming to BS 5424, 750 V conforming to VDE 0110 group C, 690 V conforming to IEC 60947
Depth 57 mm
Width 45 mm
Operating time 5...15 ms coil energisation and NC opening, 15...25 ms coil de-energisation and NC closing, 10...20 ms coil energisation and NO closing, 10...20 ms coil de-energisation and NO opening
Hold-in power consumption in VA 4.5-4.5 VA (at 20 °C)
Maximum operating rate 10000 cyc/h
Inrush power in VA 30-30 VA (at 20 °C)
Net weight 0.18 kg
Insulation resistance > 10 MOhm
Immunity to microbreaks 2 ms
Mounting support plate, rail
Non overlap distance 0.5 mm
Minimum switching current 5 mA
Environment
IP degree of protection IP2X
Protective treatment TC conforming to IEC 60068
Ambient air temperature for storage -50-80 °C
Standards JIS C8201-4-1, CSA C22.2 No 60947-4-1, UL 60947-4-1, GB/T 14048.4, EN/IEC 60947-4-1
Ambient air temperature for operation -25-50 °C
Mechanical robustness shocks contactor closed: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor open: 10 Gn for 11 ms conforming to IEC 60068-2-27, vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations contactor open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Operating altitude 2000 m without derating
Flame retardance requirement 2 conforming to NF F 16-102, requirement 2 conforming to NF F 16-101, V1 conforming to UL 94
Product certifications UKCA, CE, EAC, CSA, UL, CCC, CB Scheme
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 6.200 cm
Package 1 Length 4.800 cm
Package 1 Weight 176.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 9.123 kg

Related products

Picture of Auxiliary contact block, TeSys K, 4NC, front mounting, screw clamp terminals

Auxiliary contact block, TeSys K, 4NC, front mounting, screw clamp terminals

LA1KN04
$44.91 INC GST $71.28 INC GST
View Detail
Picture of Auxiliary contact block, TeSys K, 1NO+3NC, front mounting, screw clamp terminals

Auxiliary contact block, TeSys K, 1NO+3NC, front mounting, screw clamp terminals

LA1KN13
$47.05 INC GST $74.69 INC GST
View Detail

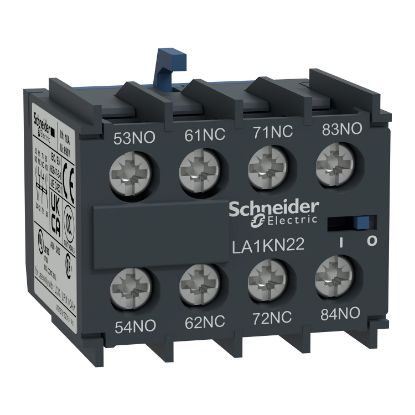

Picture of TeSys, Auxiliary contact block, TeSys K, 2NO + 2NC, front mounting, screw clamp terminals
