C634500D1S

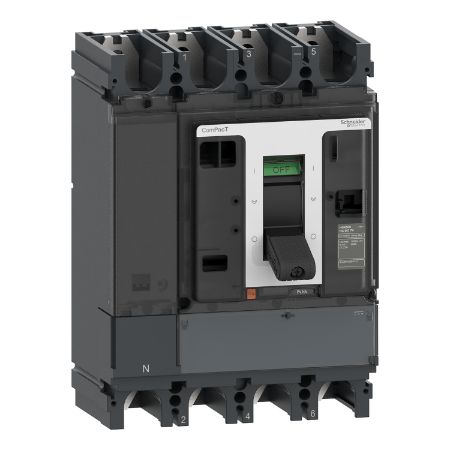

Switch disconnector, ComPacT NSX500NA DC PV, 4 poles, fixed, 500A rating, 1000V

Old price: $3,267.00 INC GST

Price: $2,874.96 INC GST

Qty:

Available for Shipping : 14-Aug-2025

Product Selector

Switch disconnector, ComPacT NSX500NA DC PV, 4 poles, fixed, 500A rating, 1000V

Be the first to review this product

Manufacturer: Schneider Electric

Environmental Disclosure

Instruction sheet

User guide

Declaration of conformity

Product Page Link

Product Data Sheet

ComPacT NSX500NA DC PV is a complete 4 poles switch disconnerctor. It's used to control and isolate electrical distribution circuits. It's an optimal choice for photovoltaic applications. The operational current is 500A at 1000VDC for DC-22A utilization categories. The operational voltage is 1000VDC. It comes with a variety of optional functions and accessories common with ComPacT NSX circuit breakers. The dimension is 140mm x 161mm x 86mm (H x W x D). It is compliant with international standards (IEC 60947), CCC and EAC specifications.

Products specifications

Attribute name	Attribute value
Main
Device short name	NSX500NA DC PV
Device application	photovoltaic
[Icw] rated short-time withstand current	6 kA during 1 s
[Uimp] rated impulse withstand voltage	8 kV
[Ie] rated operational current	DC-22A: 500 A DC 1000 V
Suitability for isolation	yes conforming to EN/IEC 60947-3
Mounting mode	fixed
Control type	toggle
Range	ComPacT new generation
[Ith] conventional free air thermal current	400 A at 65 °C
Range of product	ComPacT NSX400...630 DC PV new generation
[Ue] rated operational voltage	1000 V DC
Poles description	4P
[Ui] rated insulation voltage	1000 V DC
[Icm] rated short-circuit making capacity	6 kA switch-disconnector alone
Utilisation category	DC-22A
Product name	ComPacT NSX DC PV
Product or component type	switch disconnector
Visible break	no
Breaking capacity code	NA
Network type	DC
Contact position indicator	yes
[In] rated current	500 A
Complementary
Compatibility code	NSX500
Electrical durability	1000 cycles 1000 V DC In
Upside connection	front
Downside connection	front
Connection pitch	45 mm
Height	255 mm
Depth	110 mm
Width	185 mm
Mechanical durability	5000 cycles
Net weight	8.1 kg
Mounting support	backplate
Standards	EN/IEC 60947-3, EN/IEC 60947-1
Product certifications	CCC, EAC, CE
Environment
Ambient air temperature for storage	-50-85 °C
Pollution degree	3 conforming to IEC 60664-1
IP degree of protection	IP40 conforming to IEC 60529
Ambient air temperature for operation	-25-70 °C
IK degree of protection	IK07 conforming to IEC 62262
Electrical shock protection class	class II
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	15.000 cm
Package 1 Width	20.000 cm
Package 1 Length	29.000 cm
Package 1 Weight	7.080 kg
