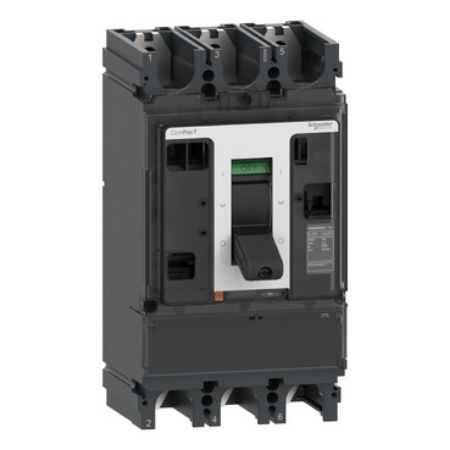

Picture of Switch disconnector, ComPacT NSX630NA DC, 3 poles, fixed, thermal current Ith 630A
SKU:

C633630DS

Switch disconnector, ComPacT NSX630NA DC, 3 poles, fixed, thermal current Ith 630A

Old price: $1,947.00 INC GST
$1,713.36 INC GST
Available for Shipping : 10-Aug-2025
Switch disconnector, ComPacT NSX630NA DC, 3 poles, fixed, thermal current Ith 630A
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
User guide
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
ComPacT NSX630NA DC is a complete 4 poles switch disconnerctor. It's used to control and isolate electrical distribution circuits. It requires an upstream protection. The operational current is 630A at 750VDC for DC-22A utilization categories. The operational voltage is 750VDC. It comes with a variety of optional functions and accessories common with ComPacT NSX circuit breakers. The dimension is 185mm x 255mm x 110mm (H x W x D). It is compliant with international standards (IEC 60947), CCC and EAC specifications.

Products specifications

Attribute name Attribute value
Main
Device short name NSX630NA DC
Device application distribution
[Icw] rated short-time withstand current 7.5 kA during 1 s
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current DC-22A: 630 A DC 750 V
Suitability for isolation yes conforming to EN/IEC 60947-3
Mounting mode fixed
Control type toggle
Range ComPacT new generation
[Ith] conventional free air thermal current 630 A at 40 °C
Range of product ComPacT NSX400...630 DC new generation
[Ue] rated operational voltage 750 V DC
Poles description 3P
[Ui] rated insulation voltage 750 V DC
[Icm] rated short-circuit making capacity 7.5 kA switch-disconnector alone
Utilisation category DC-22A
Product name ComPacT NSX DC new generation
Product or component type switch disconnector
Visible break no
Breaking capacity code NA
Network type DC
Contact position indicator yes
[In] rated current 630 A
Complementary
Compatibility code NSX630
Electrical durability 1000 cycles 750 V DC In
Upside connection front
Downside connection front
Connection pitch 45 mm
Height 255 mm
Depth 110 mm
Width 140 mm
Mechanical durability 5000 cycles
Net weight 6 kg
Mounting support backplate
Standards EN/IEC 60947-3, EN/IEC 60947-1
Product certifications CCC, EAC, CE
Environment
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to IEC 62262
Electrical shock protection class class II
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.700 cm
Package 1 Width 20.000 cm
Package 1 Length 29.100 cm
Package 1 Weight 5.350 kg
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 16.700 kg
Unit Type of Package 3 3
Number of Units in Package 3 12
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 78.800 kg
