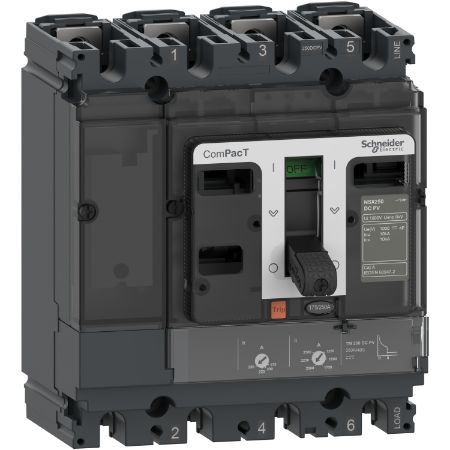

Picture of Circuit breaker, ComPacT NSX200 DC PV, 10kA/1000VDC, 4 poles, TM-DC PV trip unit 200A
SKU:

C25F4TM200D1

Circuit breaker, ComPacT NSX200 DC PV, 10kA/1000VDC, 4 poles, TM-DC PV trip unit 200A

Old price: $1,075.80 INC GST
$946.70 INC GST
Available for Shipping : 28-Aug-2025
Product Selector
Circuit breaker, ComPacT NSX200 DC PV, 10kA/1000VDC, 4 poles, TM-DC PV trip unit 200A
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
User guide
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
ComPacT NSX 200F DC PV is a 4 poles circuit breaker designed to optimize space and breaking capacity. It's an optimal choice for photovoltaic applications. The breaking capacity (Icu) is 10kA at 1000VDC with 4 poles series. The rated current is 200A and the operational voltage is 1000VDC. The dimensions are 161mm x 105mm x 86mm. It is compliant with international standard IEC 60947-2.

Products specifications

Attribute name Attribute value
Main
Device short name NSX200 DC PV
Device application photovoltaic
Breaking capacity code F 10 kA 1000 V DC
Suitability for isolation yes conforming to EN/IEC 60947-2
Breaking capacity 10 kA Icu at 1000 V DC 4 poles in series conforming to IEC 60947-2
Mounting mode fixed
Control type toggle
Range ComPacT new generation
Range of product ComPacT NSX100...250 DC PV new generation
Trip unit name TM-DC
Trip unit technology thermal-magnetic
Poles description 4P
Utilisation category category A
Product name ComPacT NSX DC PV
Product or component type circuit breaker
Network type DC
Trip unit protection functions LI
[Ue] rated operational voltage 1000 V DC
[In] rated current 200 A at 40 °C
Complementary
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
Connection pitch 35 mm
Compatibility code NSX200
Mechanical durability 10000 cycles
Trip unit rating 200-200 A at 40 °C
Upside connection front
Long time pick-up adjustment type Ir adjustable
Long time pick-up adjustment range 0.7...1 x In
Electrical durability 1000 cycles at 1000 V In
Protection type I : for short-circuit protection (magnetic), L : for overload protection (thermal)
Downside connection front
Earth-leakage protection without
Height 161 mm
[Ics] rated service breaking capacity 10 kA at 1000 V DC conforming to IEC 60947-2
Depth 86 mm
Width 140 mm
Mounting position flat on the back, horizontal and vertical
[Ui] rated insulation voltage 1000 V DC conforming to IEC 60947-2
Net weight 2.8 kg
Instantaneous pick-up adjustment type Ii adjustable
Long time delay adjustment type fixed
Instantaneous pick-up adjustment range 5...10 x In
Mounting support backplate
Environment
Relative humidity 0-95 %
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to IEC 62262
Overvoltage category class II
Operating altitude 2000 m...5000 m with derating, 0...2000 m without derating
Electrical shock protection class class II
Standards EN/IEC 60947
Product certifications Marine, EAC, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.8 cm
Package 1 Width 14.5 cm
Package 1 Length 19.0 cm
Package 1 Weight 2.613 kg
