C254200D1S

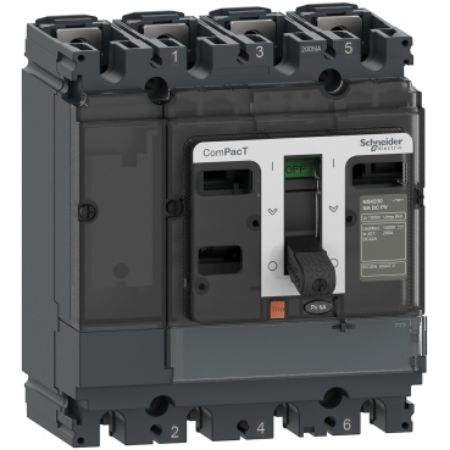

Switch disconnector, ComPacT NSX200NA DC PV, 4 poles, fixed, 200A rating, 1000V

Old price: $1,379.40 INC GST

Price: $1,213.87 INC GST

Qty:

Available for Shipping : 25-Sep-2025

Product Selector

Switch disconnector, ComPacT NSX200NA DC PV, 4 poles, fixed, 200A rating, 1000V

Be the first to review this product

Manufacturer: Schneider Electric

Instruction sheet

Environmental Disclosure

User guide

Product Page Link

Product Data Sheet

ComPacT NSX200NA DC PV is a complete 4 poles switch disconnerctor. It's used to control and isolate electrical distribution circuits. It's an optimal choice for photovoltaic applications. The operational current is 200A at 1000VDC for DC-22A utilization categories. The operational voltage is 1000VDC. It comes with a variety of optional functions and accessories common with ComPacT NSX circuit breakers. The dimension is 140mm x 161mm x 86mm (H x W x D). It is compliant with international standards (IEC 60947), CCC and EAC specifications.

Products specifications

Attribute name	Attribute value
Main
Device short name	NSX200NA DC PV
Device application	photovoltaic
[Icw] rated short-time withstand current	2.5 kA during 1 s
[Uimp] rated impulse withstand voltage	8 kV
[Ie] rated operational current	DC-22A: 200 A DC 1000 V
Suitability for isolation	yes conforming to EN/IEC 60947-3
Mounting mode	fixed
Control type	toggle
Range	ComPacT new generation
[Ith] conventional free air thermal current	150 A at 65 °C
Range of product	ComPacT NSX100...250 DC PV new generation
[Ue] rated operational voltage	1000 V DC
Poles description	4P
[Ui] rated insulation voltage	1000 V DC
[Icm] rated short-circuit making capacity	2.5 kA switch-disconnector alone
Utilisation category	DC-22A
Product name	ComPacT NSX DC PV
Product or component type	switch disconnector
Visible break	no
Breaking capacity code	NA
Network type	DC
Contact position indicator	yes
[In] rated current	200 A
Complementary
Compatibility code	NSX200
Electrical durability	1000 cycles 1000 V DC In
Upside connection	front
Downside connection	front
Connection pitch	35 mm
Height	161 mm
Depth	86 mm
Width	140 mm
Mechanical durability	10000 cycles
Net weight	2.8 kg
Mounting support	backplate
Standards	EN/IEC 60947-3, EN/IEC 60947-1
Product certifications	CCC, EAC, CE
Environment
Ambient air temperature for storage	-50-85 °C
Pollution degree	3 conforming to IEC 60664-1
IP degree of protection	IP40 conforming to IEC 60529
Ambient air temperature for operation	-25-70 °C
IK degree of protection	IK07 conforming to IEC 62262
Electrical shock protection class	class II
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	13.500 cm
Package 1 Width	14.500 cm
Package 1 Length	19.000 cm
Package 1 Weight	2.606 kg
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	16.056 kg
Unit Type of Package 3	3
Number of Units in Package 3	48
Package 3 Height	45.000 cm
Package 3 Width	80.000 cm
Package 3 Length	120.000 cm
Package 3 Weight	140.448 kg
